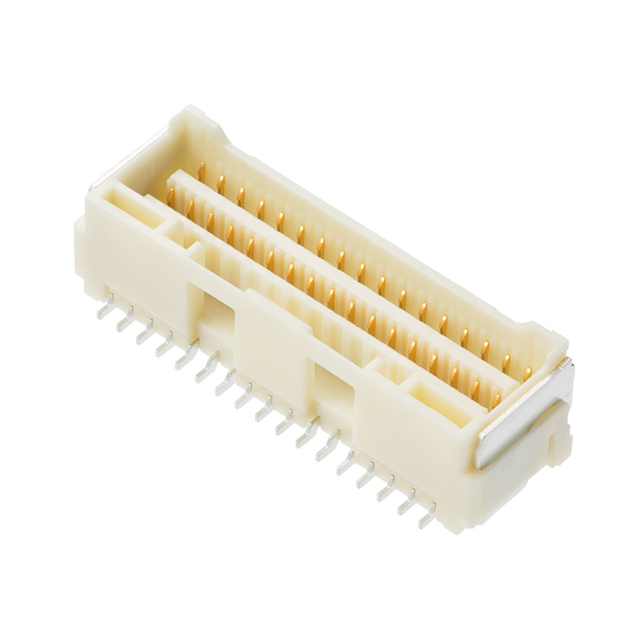

2132273270

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Insulation Height :

0.346 (8.80mm)

Current Rating :

2 A

Style :

Board to Cable/Wire

Voltage Rating :

100 VAC/DC

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Housing Material :

Polyamide (PA)

IP Rating :

-

Contact Material :

COPPER ALLOY

Contact Gender :

Socket (Female)

Contact Length - Post :

-

Tradename :

CLIK-Mate

Minimum Operating Temperature :

- 40 C

Applications :

-

Ingress Protection :

-

Number of Positions Loaded :

All

Mating Post Length :

-

Mounting Style :

SMD/SMT

Pitch :

1.5 mm

Insulation Material :

Polyamide (PA), Nylon

Contact Shape :

-

Operating Temperature :

-40°C ~ 105°C

Series :

213227

Material Flammability Rating :

UL94 V-0

Type :

Receptacle

Insulation Color :

Natural

Contact Finish - Mating :

Gold

Contact Plating :

Gold

Base Product Number :

213227

Contact Finish - Post :

Tin

Number of Rows :

2 Row

Packaging :

Reel

Maximum Operating Temperature :

+ 105 C

Housing Gender :

-

Fastening Type :

Latch Holder

Termination :

Solder

Contact Finish Thickness - Mating :

30.0µin (0.76µm)

Connector Type :

Receptacle

Contact Type :

-

Mated Stacking Heights :

-

Flammability Rating :

UL 94 V-0

Mounting Angle :

Straight

Product Status :

Active

Termination Style :

Solder

RoHS :

Details

Product :

Headers

Current Rating (Amps) :

Varies by Wire Gauge

Termination Post Length :

-

Mounting Type :

Surface Mount

Pitch - Mating :

0.059 (1.50mm)

Number of Positions :

32 Position

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Row Spacing - Mating :

-

Row Spacing :

1.5 mm

Features :

Pick and Place, Solder Retention
