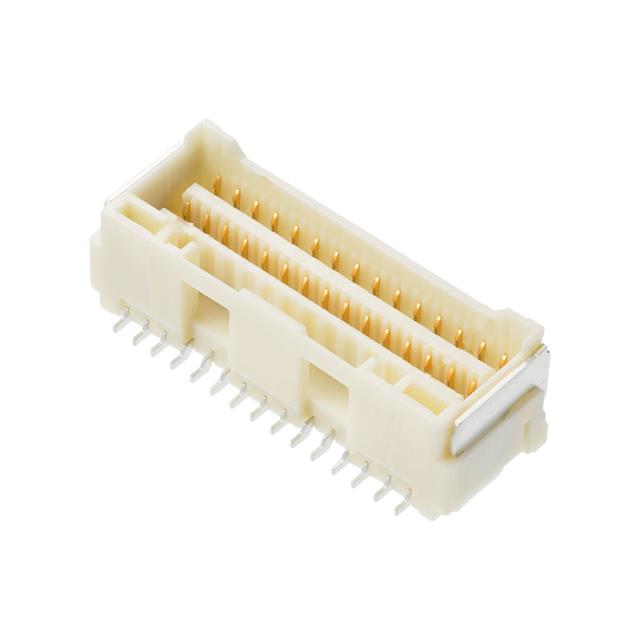

2132273070

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Number of Positions :

30 Position

Series :

213227

Contact Type :

-

Connector Type :

Receptacle

Contact Length - Post :

-

Package :

Bulk

Termination Post Length :

-

RoHS :

Details

Current Rating (Amps) :

Varies by Wire Gauge

Mounting Style :

SMD/SMT

Contact Finish - Mating :

Gold

Mating Post Length :

-

Row Spacing :

1.5 mm

Packaging :

Reel

Voltage Rating :

100 VAC/DC

Mounting Angle :

Straight

Contact Material :

COPPER ALLOY

Contact Finish Thickness - Mating :

30.0µin (0.76µm)

Number of Rows :

2 Row

Applications :

-

Contact Shape :

-

Housing Material :

Polyamide (PA)

Product :

Headers

Fastening Type :

Latch Holder

Mated Stacking Heights :

-

Pitch - Mating :

0.059 (1.50mm)

Minimum Operating Temperature :

- 40 C

Base Product Number :

213227

Maximum Operating Temperature :

+ 105 C

IP Rating :

-

Contact Gender :

Socket (Female)

Tradename :

CLIK-Mate

Mounting Type :

Surface Mount

Contact Plating :

Gold

Row Spacing - Mating :

-

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Pitch :

1.5 mm

Insulation Material :

Polyamide (PA), Nylon

Product Status :

Active

Flammability Rating :

UL 94 V-0

Type :

Receptacle

Current Rating :

2 A

Termination Style :

Solder

Housing Gender :

-

Ingress Protection :

-

Features :

Pick and Place, Solder Retention

Contact Finish - Post :

Tin

Material Flammability Rating :

UL94 V-0

Operating Temperature :

-40°C ~ 105°C

Insulation Height :

0.346 (8.80mm)

Insulation Color :

Natural

Termination :

Solder

Style :

Board to Cable/Wire

Number of Positions Loaded :

All
