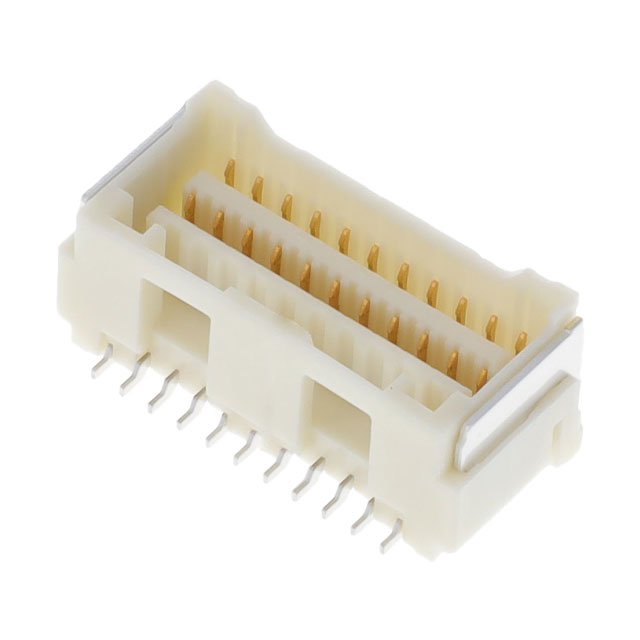

2132272270

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Housing Material :

Polyamide (PA)

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Contact Material :

COPPER ALLOY

Voltage Rating :

100 VAC/DC

Base Product Number :

213227

Current Rating (Amps) :

Varies by Wire Gauge

Pitch - Mating :

0.059 (1.50mm)

Contact Finish - Mating :

Gold

Mounting Style :

SMD/SMT

Product :

Headers

Termination :

Solder

Contact Gender :

Socket (Female)

Features :

Pick and Place, Solder Retention

Packaging :

Cut Tape

Termination Post Length :

-

Operating Temperature :

-40°C ~ 105°C

Style :

Board to Cable/Wire

Mating Post Length :

-

Contact Length - Post :

-

Connector Type :

Receptacle

Current Rating :

2 A

Ingress Protection :

-

Number of Positions Loaded :

All

Insulation Color :

Natural

Housing Gender :

-

Row Spacing :

1.5 mm

Mounting Angle :

Straight

Number of Rows :

2 Row

Contact Finish - Post :

Tin

Minimum Operating Temperature :

- 40 C

Insulation Height :

0.346 (8.80mm)

Product Status :

Active

Type :

Receptacle

Mounting Type :

Surface Mount

Contact Type :

-

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Contact Finish Thickness - Mating :

30.0µin (0.76µm)

Series :

213227

Mated Stacking Heights :

-

Fastening Type :

Latch Holder

Tradename :

CLIK-Mate

Number of Positions :

22 Position

Termination Style :

Solder

Insulation Material :

Polyamide (PA), Nylon

Contact Shape :

-

Applications :

-

Row Spacing - Mating :

-

Material Flammability Rating :

UL94 V-0

Flammability Rating :

UL 94 V-0

IP Rating :

-

Maximum Operating Temperature :

+ 105 C

Pitch :

1.5 mm

Contact Plating :

Gold
