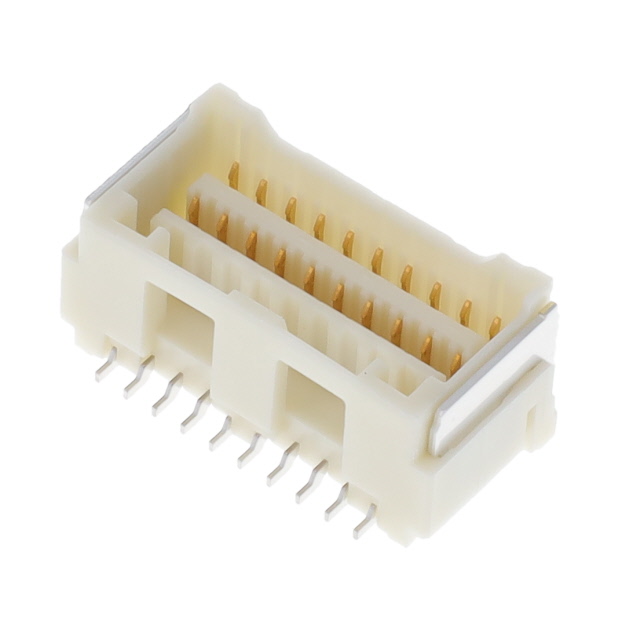

2132272070

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Flammability Rating :

UL 94 V-0

Contact Length - Post :

-

Tradename :

CLIK-Mate

Termination :

Solder

Current Rating (Amps) :

Varies by Wire Gauge

Contact Type :

-

Termination Post Length :

-

Voltage Rating :

100 VAC/DC

Mated Stacking Heights :

-

Row Spacing - Mating :

-

Current Rating :

2 A

Fastening Type :

Latch Holder

Contact Shape :

-

Contact Finish - Post :

Tin

Pitch :

1.5 mm

Termination Style :

Solder

Pitch - Mating :

0.059 (1.50mm)

Packaging :

Cut Tape

Mounting Angle :

Straight

Housing Gender :

-

Mating Post Length :

-

IP Rating :

-

Style :

Board to Cable/Wire

Features :

Pick and Place, Solder Retention

Product Status :

Active

Insulation Color :

Natural

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Type :

Receptacle

Minimum Operating Temperature :

- 40 C

Series :

213227

Row Spacing :

1.5 mm

Number of Positions :

20 Position

Package :

Bulk

Contact Finish Thickness - Mating :

30.0µin (0.76µm)

Contact Finish - Mating :

Gold

Mounting Style :

SMD/SMT

RoHS :

Details

Operating Temperature :

-40°C ~ 105°C

Contact Material :

COPPER ALLOY

Ingress Protection :

-

Contact Plating :

Gold

Base Product Number :

213227

Contact Gender :

Socket (Female)

Material Flammability Rating :

UL94 V-0

Mounting Type :

Surface Mount

Maximum Operating Temperature :

+ 105 C

Product :

Headers

Number of Rows :

2 Row

Housing Material :

Polyamide (PA)

Applications :

-

Number of Positions Loaded :

All

Insulation Material :

Polyamide (PA), Nylon

Connector Type :

Receptacle

Insulation Height :

0.346 (8.80mm)
