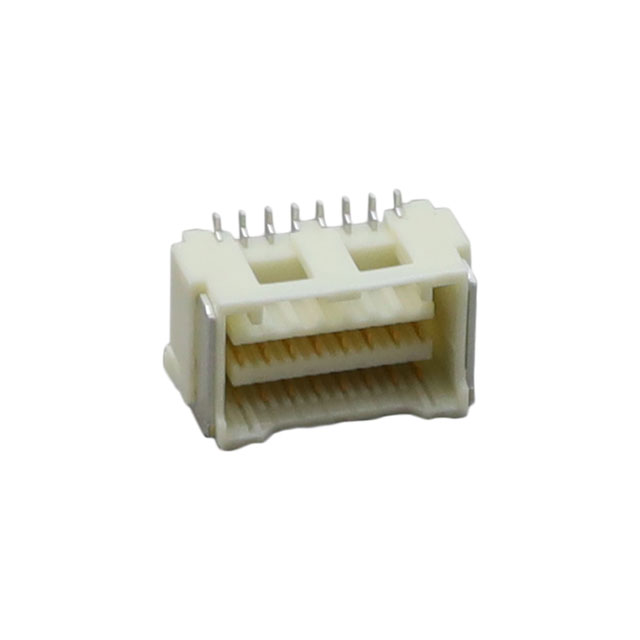

2132271670

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Application :

Signal, Wire-to-Board

Row Spacing :

1.5 mm

Style :

Board to Cable/Wire

Voltage Rating :

100 VAC/DC

Contact Shape :

-

Contact Type :

-

Termination Style :

Solder

Connector Type :

Receptacle

Type :

Receptacle

Contact Plating :

Gold

Product :

Headers

Mounting Style :

SMD/SMT

Row Spacing - Mating :

-

Contact Finish - Mating :

Gold

Tradename :

CLIK-Mate

Mated Stacking Heights :

-

Mounting Type :

Surface Mount

Pitch :

1.5 mm

Mounting Angle :

Straight

Series :

213227

Minimum Operating Temperature :

- 40 C

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Number of Positions Loaded :

All

Maximum Operating Temperature :

+ 105 C

Insulation Material :

Polyamide (PA), Nylon

Contact Material :

COPPER ALLOY

Termination :

Solder

Current Rating (Amps) :

Varies by Wire Gauge

Operating Temperature :

-40°C ~ 105°C

Contact Finish - Post :

Tin

Pitch - Mating :

0.059 (1.50mm)

Housing Material :

Polyamide (PA)

Base Product Number :

213227

Applications :

-

Contact Length - Post :

-

Contact Finish Thickness - Mating :

30.0µin (0.76µm)

Current Rating :

2 A

Insulation Height :

0.346 (8.80mm)

Features :

Pick and Place, Solder Retention

Product Status :

Active

Package :

Bulk

IP Rating :

-

Number of Positions :

16 Position

Ingress Protection :

-

Contact Gender :

Socket (Female)

Material Flammability Rating :

UL94 V-0

Flammability Rating :

UL 94 V-0

Fastening Type :

Latch Holder

Packaging :

Cut Tape

Insulation Color :

Natural

Housing Gender :

-

Number of Rows :

2 Row
