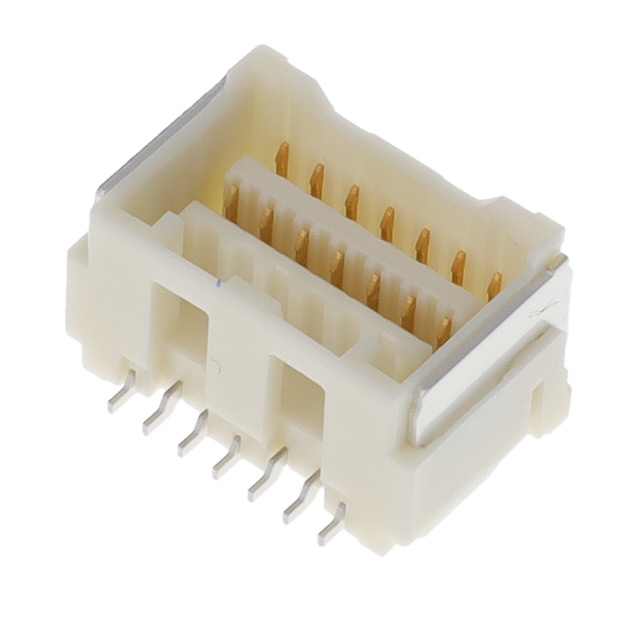

2132271470

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Number of Positions Loaded :

All

IP Rating :

-

Mated Stacking Heights :

-

Contact Length - Post :

-

Product :

Headers

Termination Style :

Solder

Voltage Rating :

100 VAC/DC

Contact Finish Thickness - Mating :

30.0µin (0.76µm)

Maximum Operating Temperature :

+ 105 C

Current Rating (Amps) :

Varies by Wire Gauge

Contact Gender :

Socket (Female)

Housing Gender :

-

Ingress Protection :

-

Minimum Operating Temperature :

- 40 C

Contact Plating :

Gold

Mounting Angle :

Straight

Fastening Type :

Latch Holder

Packaging :

Cut Tape

Termination Post Length :

-

Contact Material :

COPPER ALLOY

Product Status :

Active

Pitch :

1.5 mm

Pitch - Mating :

0.059 (1.50mm)

Insulation Height :

0.346 (8.80mm)

Row Spacing :

1.5 mm

Base Product Number :

213227

Connector Type :

Receptacle

Operating Temperature :

-40°C ~ 105°C

Flammability Rating :

UL 94 V-0

Type :

Receptacle

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Contact Type :

-

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Current Rating :

2 A

Row Spacing - Mating :

-

Tradename :

CLIK-Mate

Material Flammability Rating :

UL94 V-0

Applications :

-

Contact Finish - Mating :

Gold

Features :

Pick and Place, Solder Retention

Number of Positions :

14 Position

Mating Post Length :

-

Contact Shape :

-

Insulation Color :

Natural

Contact Finish - Post :

Tin

Insulation Material :

Polyamide (PA), Nylon

Number of Rows :

2 Row

Housing Material :

Polyamide (PA)

Mounting Style :

SMD/SMT

Style :

Board to Cable/Wire

Series :

213227

Mounting Type :

Surface Mount

Termination :

Solder
