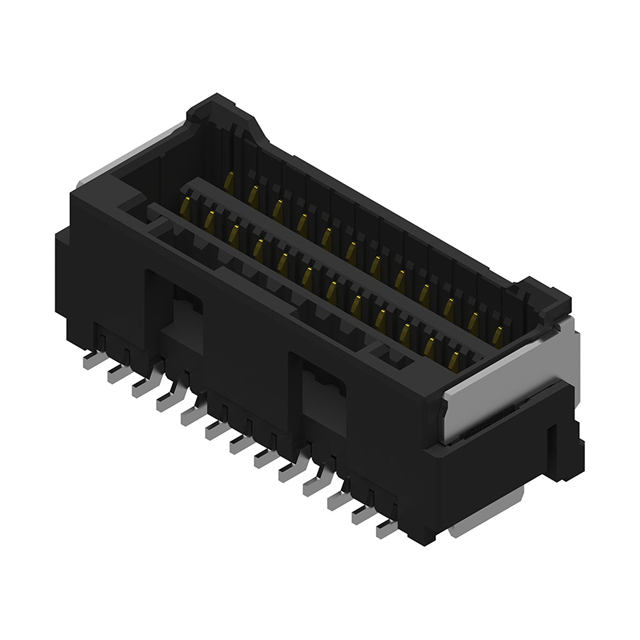

2132271011

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Termination Style :

Solder

Product Status :

Active

Contact Shape :

-

Mated Stacking Heights :

-

Insulation Color :

Black

Tradename :

CLIK-Mate

Pitch - Mating :

0.059 (1.50mm)

Row Spacing - Mating :

-

IP Rating :

-

Application :

Signal, Wire-to-Board

Contact Type :

-

Pitch :

1.5 mm

Number of Positions Loaded :

All

Mounting Angle :

Straight

Current Rating :

2 A

Type :

Receptacle

Operating Temperature :

-40°C ~ 105°C

Contact Length - Post :

-

Mounting Style :

SMD/SMT

Material Flammability Rating :

UL94 V-0

Contact Material :

COPPER ALLOY

Base Product Number :

213227

Ingress Protection :

-

Row Spacing :

1.5 mm

Housing Material :

Polyamide (PA)

Contact Finish - Post :

Tin

Contact Finish - Mating :

Gold

Contact Plating :

Gold

Maximum Operating Temperature :

+ 105 C

Series :

213227

Voltage Rating :

100 VAC/DC

Fastening Type :

Latch Holder

Mounting Type :

Surface Mount

Connector Type :

Receptacle

Contact Gender :

Socket (Female)

Insulation Height :

0.346 (8.80mm)

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Termination :

Solder

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Minimum Operating Temperature :

- 40 C

Style :

Board to Cable/Wire

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Product :

Headers

Features :

Pick and Place, Solder Retention

Insulation Material :

Polyamide (PA), Nylon

Housing Gender :

-

Flammability Rating :

UL 94 V-0

Current Rating (Amps) :

Varies by Wire Gauge

Applications :

-

Number of Rows :

2 Row

Number of Positions :

10 Position

Packaging :

MouseReel
