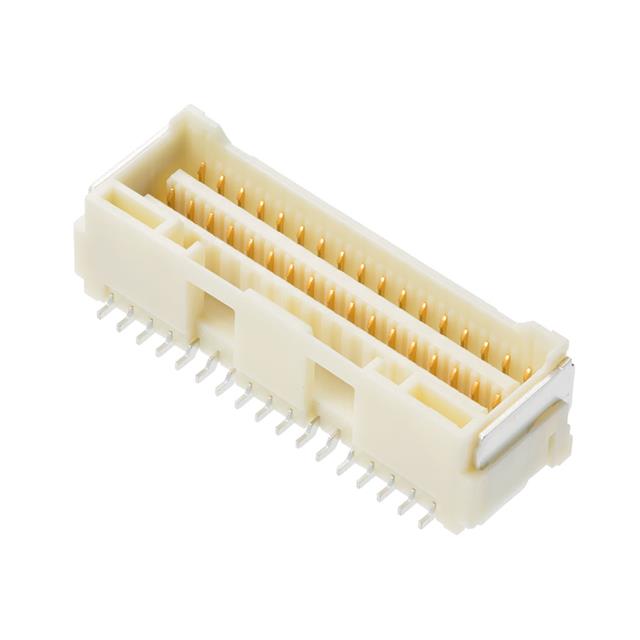

2132270870

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Contact Finish - Post :

Tin

Tradename :

CLIK-Mate

Number of Positions Loaded :

All

Fastening Type :

Latch Holder

Packaging :

Reel

Base Product Number :

213227

Insulation Color :

Natural

Product Status :

Active

Termination Style :

Solder

Contact Length - Post :

-

Termination :

Solder

Contact Finish Thickness - Mating :

30.0µin (0.76µm)

Material Flammability Rating :

UL94 V-0

Row Spacing :

1.5 mm

Number of Positions :

8 Position

Mounting Angle :

Straight

Insulation Height :

0.346 (8.80mm)

Termination Post Length :

-

Type :

Receptacle

Mating Post Length :

-

Contact Type :

-

Pitch - Mating :

0.059 (1.50mm)

Current Rating :

2 A

Features :

Pick and Place, Solder Retention

Voltage Rating :

100 VAC/DC

Mounting Type :

Surface Mount

Insulation Material :

Polyamide (PA), Nylon

Contact Shape :

-

Mated Stacking Heights :

-

Housing Material :

Polyamide (PA)

Contact Gender :

Socket (Female)

Row Spacing - Mating :

-

Pitch :

1.5 mm

Flammability Rating :

UL 94 V-0

Product :

Headers

Minimum Operating Temperature :

- 40 C

Mounting Style :

SMD/SMT

Operating Temperature :

-40°C ~ 105°C

Housing Gender :

-

Package :

Bulk

Number of Rows :

2 Row

Series :

213227

Contact Material :

COPPER ALLOY

Ingress Protection :

-

Contact Finish - Mating :

Gold

Connector Type :

Receptacle

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Contact Plating :

Gold

Maximum Operating Temperature :

+ 105 C

IP Rating :

-

Applications :

-

Style :

Board to Cable/Wire

Current Rating (Amps) :

Varies by Wire Gauge
