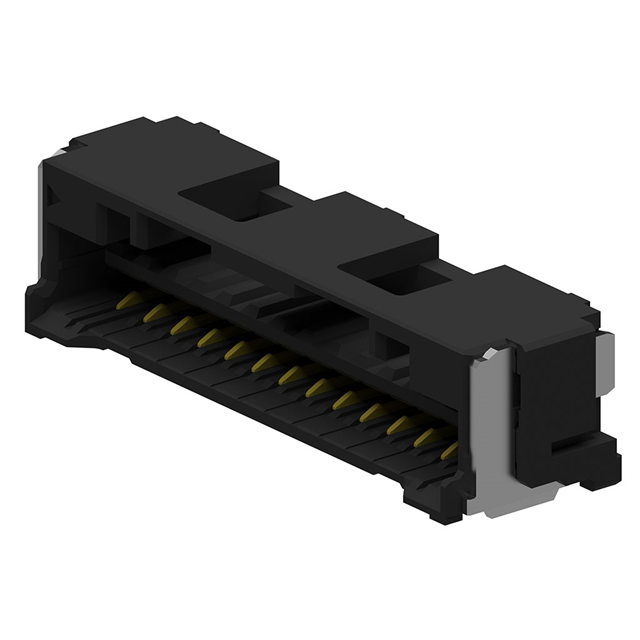

2132260611

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Style :

Board to Cable/Wire

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Insulation Color :

Black

Contact Length - Post :

-

Connector Type :

Receptacle

Pitch :

1.5 mm

Insulation Material :

Polyamide (PA), Nylon

Housing Color :

Black

Mounting Type :

Surface Mount, Right Angle

Contact Finish - Mating :

Gold

Product :

Headers

Tradename :

CLIK-Mate

Number of Rows :

1 Row

Minimum Operating Temperature :

- 40 C

Ingress Protection :

-

Maximum Operating Temperature :

+ 105 C

Features :

Pick and Place, Solder Retention

Termination Style :

Solder

Contact Finish - Post :

Tin

Application :

Signal, Wire-to-Board

Base Product Number :

213226

Fastening Type :

Latch Holder

Row Spacing - Mating :

-

Type :

Receptacle

Current Rating (Amps) :

Varies by Wire Gauge

Applications :

-

Packaging :

Cut Tape

Contact Material :

COPPER ALLOY

Series :

213226

Current Rating :

2 A

RoHS :

Details

Contact Shape :

-

Number of Positions :

6 Position

Operating Temperature :

-40°C ~ 105°C

Insulation Height :

0.252 (6.40mm)

Housing Gender :

-

Termination :

Solder

Material Flammability Rating :

UL94 V-0

Contact Type :

-

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Pitch - Mating :

0.059 (1.50mm)

Housing Material :

Polyamide (PA)

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Product Status :

Active

Number of Positions Loaded :

All

Voltage Rating :

100 VAC/DC

Mated Stacking Heights :

-

Flammability Rating :

UL 94 V-0

Contact Plating :

Gold

IP Rating :

-

Mounting Style :

SMD/SMT

Mounting Angle :

RIGHT ANGLE

Contact Gender :

Socket (Female)
