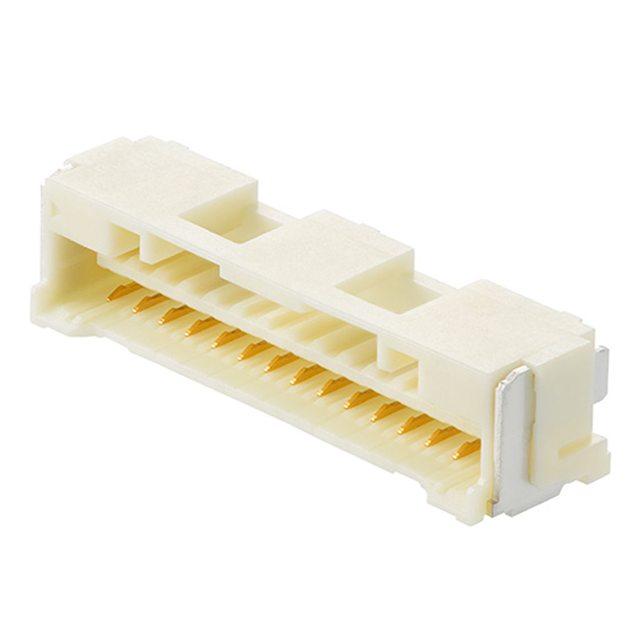

2132260430

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

RoHS :

Details

Contact Shape :

-

Contact Gender :

Socket (Female)

Housing Gender :

-

Current Rating :

2 A

Maximum Operating Temperature :

+ 105 C

Style :

Board to Cable/Wire

IP Rating :

-

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Number of Positions Loaded :

All

Application :

Signal, Wire-to-Board

Contact Finish - Mating :

Gold

Product Status :

Active

Product :

Headers

Material Flammability Rating :

UL94 V-0

Current Rating (Amps) :

Varies by Wire Gauge

Package :

Tape and Reel (TR)

Applications :

-

Contact Finish - Post :

Tin

Contact Type :

-

Base Product Number :

213226

Contact Plating :

Gold

Features :

Pick and Place, Solder Retention

Number of Positions :

4 Position

Termination Style :

Solder

Type :

Receptacle

Series :

213226

Packaging :

Cut Tape

Insulation Height :

0.252 (6.40mm)

Ingress Protection :

-

Pitch - Mating :

0.059 (1.50mm)

Mounting Type :

Surface Mount, Right Angle

Insulation Color :

Natural

Operating Temperature :

-40°C ~ 105°C

Tradename :

CLIK-Mate

Connector Type :

Receptacle

Contact Material :

COPPER ALLOY

Mated Stacking Heights :

-

Minimum Operating Temperature :

- 40 C

Flammability Rating :

UL 94 V-0

Fastening Type :

Latch Holder

Voltage Rating :

100 VAC/DC

Insulation Material :

Polyamide (PA), Nylon

Contact Length - Post :

-

Contact Finish Thickness - Mating :

15.0μin (0.38μm)

Mounting Style :

SMD/SMT

Mounting Angle :

RIGHT ANGLE

Housing Material :

Polyamide (PA)

Termination :

Solder

Pitch :

1.5 mm

Row Spacing - Mating :

-

Number of Rows :

1 Row
