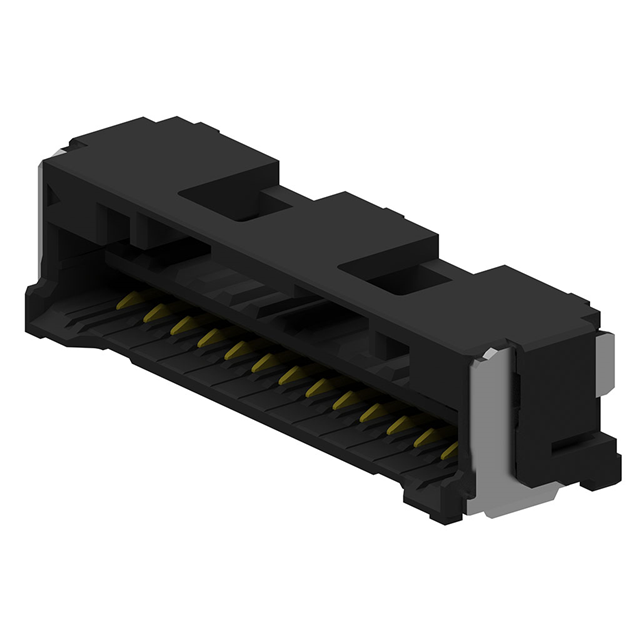

2132260411

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Current Rating :

2 A

Contact Finish - Post :

Tin

Operating Temperature :

-40°C ~ 105°C

Mounting Type :

Surface Mount, Right Angle

Mounting Angle :

RIGHT ANGLE

Housing Material :

Polyamide (PA)

RoHS :

Details

Contact Length - Post :

-

Insulation Material :

Polyamide (PA), Nylon

Connector Type :

Receptacle

Base Product Number :

213226

Contact Finish - Mating :

Gold

Termination :

Solder

Number of Positions :

4 Position

Pitch :

1.5 mm

Tradename :

CLIK-Mate

Product :

Headers

Insulation Height :

0.252 (6.40mm)

Current Rating (Amps) :

Varies by Wire Gauge

Features :

Pick and Place, Solder Retention

Mated Stacking Heights :

-

Number of Positions Loaded :

All

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Contact Plating :

Gold

Fastening Type :

Latch Holder

Applications :

-

Insulation Color :

Black

Contact Material :

COPPER ALLOY

Flammability Rating :

UL 94 V-0

Pitch - Mating :

0.059 (1.50mm)

Number of Rows :

1 Row

Contact Type :

-

Packaging :

Cut Tape

Style :

Board to Cable/Wire

Type :

Receptacle

Ingress Protection :

-

Housing Gender :

-

Contact Shape :

-

Contact Gender :

Socket (Female)

Voltage Rating :

100 VAC/DC

Maximum Operating Temperature :

+ 105 C

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Series :

213226

Product Status :

Active

Row Spacing - Mating :

-

Termination Style :

Solder

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Material Flammability Rating :

UL94 V-0

Housing Color :

Black

IP Rating :

-

Minimum Operating Temperature :

- 40 C

Application :

Signal, Wire-to-Board

Mounting Style :

SMD/SMT
