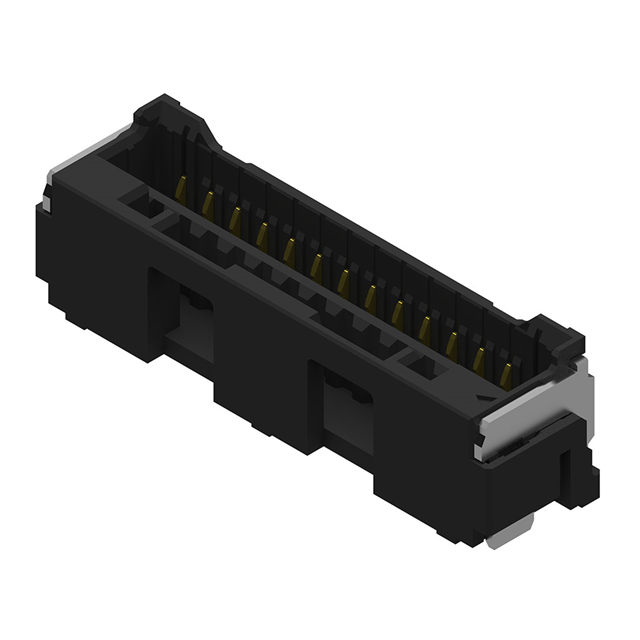

2132250411

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Pitch :

1.5 mm

Product Status :

Active

Insulation Height :

0.287 (7.30mm)

Contact Shape :

-

Flammability Rating :

UL 94 V-0

Fastening Type :

Latch Holder

Mated Stacking Heights :

-

Housing Gender :

-

Termination :

Solder

Application :

Signal, Wire-to-Board

Housing Color :

Black

Contact Finish - Post :

Tin

Minimum Operating Temperature :

- 40 C

Contact Length - Post :

-

Type :

Receptacle

Number of Rows :

1 Row

Mounting Angle :

Straight

Mounting Style :

SMD/SMT

Voltage Rating :

100 VAC/DC

Base Product Number :

213225

Connector Type :

Receptacle

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Contact Gender :

Socket (Female)

Material Flammability Rating :

UL94 V-0

Applications :

-

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Contact Material :

COPPER ALLOY

Pitch - Mating :

0.059 (1.50mm)

Product :

Headers

Number of Positions :

4 Position

Style :

Board to Cable/Wire

Maximum Operating Temperature :

+ 105 C

Features :

Solder Retention

Series :

213225

Current Rating (Amps) :

Varies by Wire Gauge

IP Rating :

-

Contact Plating :

Gold

Insulation Material :

Polyamide (PA), Nylon

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Contact Finish - Mating :

Gold

Insulation Color :

Black

Ingress Protection :

-

Termination Style :

Solder

Mounting Type :

Surface Mount

Number of Positions Loaded :

All

RoHS :

Details

Row Spacing - Mating :

-

Operating Temperature :

-40°C ~ 105°C

Tradename :

CLIK-Mate

Housing Material :

Polyamide (PA)

Packaging :

Cut Tape

Contact Type :

-

Current Rating :

2 A
