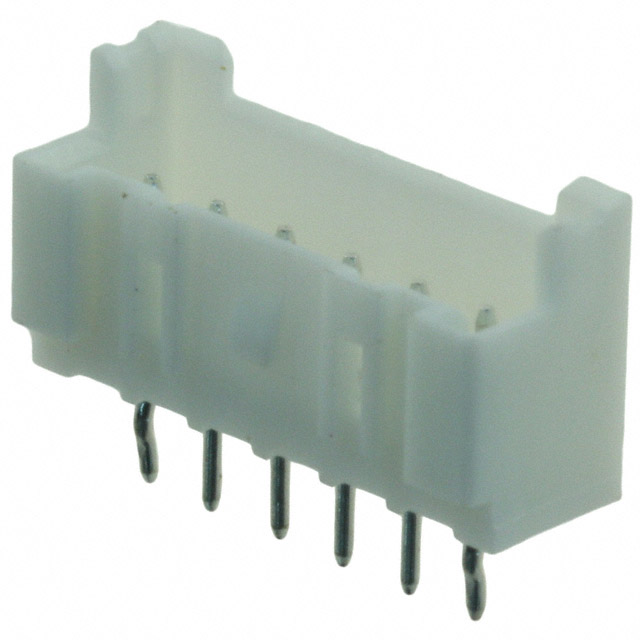

2132230-6
Or copy the link below:
- Mfr.Part #
- 2132230-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 6POS 2.5MM
- Stock
- 998
- In Stock ：
- 998
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Contacts :
- 6
- Packaging :
- Bulk
- Published :
- 2004
- Contact Finish - Mating :
- Tin
- Mating Post Length :
- 3.6mm
- RoHS Status :
- RoHS Compliant
- Contact Shape :
- Circular
- Contact Gender :
- Male
- Gender :
- Male
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Orientation :
- Vertical
- Sealable :
- No
- Material Flammability Rating :
- UL94 V-0
- Style :
- Board to Cable/Wire
- Min Operating Temperature :
- -55°C
- Voltage - Rated :
- 250VAC
- Max Operating Temperature :
- 105°C
- Mount :
- Through Hole
- Contact Plating :
- Tin
- Factory Lead Time :
- 21 Weeks
- ELV :
- Compliant
- PCB Mounting Orientation :
- Vertical
- Contact Length - Mating :
- 0.122 3.10mm
- Pitch - Mating :
- 0.098 2.50mm
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Color :
- Natural
- Current Rating (Amps) :
- 4.2A
- Operating Supply Voltage :
- 250V
- Radiation Hardening :
- No
- Number of Positions :
- 6
- Feature :
- Board Guide
- Number of Rows :
- 1
- Number of Positions Loaded :
- All
- Insulation Height :
- 0.346 8.80mm
- Housing Color :
- Natural, White
- Mounting Type :
- Through Hole
- Length - Tail :
- 3.4mm
- Contact Type :
- Male Pin
- Length :
- 20mm
- Lead Free :
- Lead Free
- Plating Thickness :
- 2.03μm
- Pitch :
- 2.5mm
- Connector Type :
- Header
- Housing Material :
- Nylon
- Fastening Type :
- Friction Lock
- Contact Material :
- COPPER ALLOY
- Height :
- 8.8mm
- Contact Current Rating :
- 4.2A
- Contact Length - Post :
- 0.134 3.40mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Color :
- White
- Current Rating :
- 3A
- Contact Finish Thickness - Mating :
- 80.0μin 2.03μm
- PCB Thickness :
- 1.6002mm
- PCB Mount Retention :
- With
- Termination :
- Kinked Pin, Solder
- Operating Temperature :
- -55°C~105°C
- Contact Style :
- Straight
- Max Voltage Rating (AC) :
- 250V
- Contact Finish - Post :
- Tin
- Mating Retention :
- With
- Width :
- 6.4mm
- Series :
- Economy Power 2.5
- Applications :
- General Purpose, Industrial, Lighting
- Shrouding :
- Shrouded - 4 Wall
- Flammability Rating :
- UL94 V-0
- REACH SVHC :
- No SVHC
- Contact Finish Thickness - Post :
- 80.0μin 2.03μm
- Depth :
- 6.4mm
- Plating :
- Tin
- PCB Mount Alignment :
- With
- Datasheets
- 2132230-6
Economy Power 2.5 Series 1-Row Header Kinked Pin, Solder Copper Alloy Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 6-Position Board to Cable/Wire 0.346 8.80mm Height
2132230-6 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Economy Power 2.5 Series.Use it below 105°C.A minimum temperature of -55°C must be maintained for the operation of this device.There is the possibility of using the device for General Purpose, Industrial, Lighting.In many ways, Board Guide makes it more powerful.By Through Hole, the part is mounted.The operating voltage of this memory is 250V.Operating temperature is set to -55°C~105°C.
2132230-6 Features
Economy Power 2.5 series
2132230-6 Applications
There are a lot of TE Connectivity AMP Connectors
2132230-6 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
