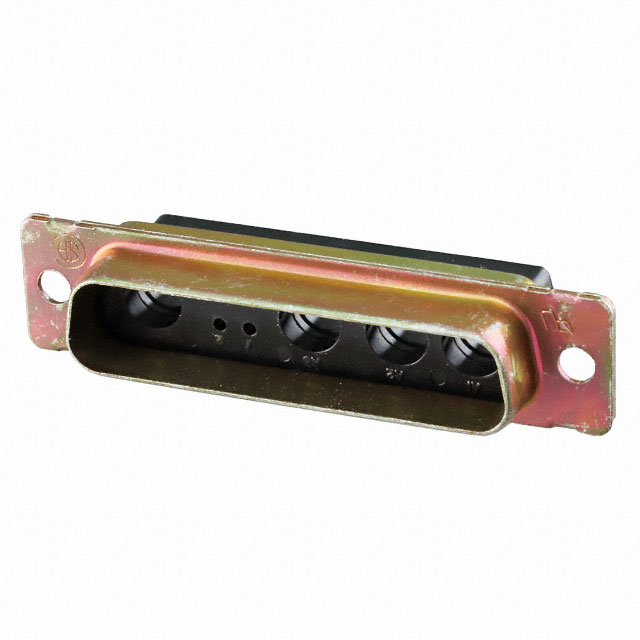

212498-1

Manufacturer :

TE Connectivity Aerospace Defense and Marine

Product Category :

D-Sub, D-Shaped Connector Housings

Packaging :

Bulk

Number of Positions :

9 (5 + 4 Coax)

Number of Rows :

2

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Sealable :

No

Mixed Contacts :

No

Flange Feature :

Housing/Shell (Unthreaded)

Dielectric Material :

Polyester

Mounting Type :

Free Hanging (In-Line)

Number of Conductors :

ONE

Depth :

16.76mm

Contact Style :

Power

Empty Shell :

No

Color :

Black

Published :

2009

Option :

GENERAL PURPOSE

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Min Operating Temperature :

-55°C

Filter Feature :

No

Connector Type :

Plug for Male Contacts

Contact Gender :

Male

Hole Diameter :

3.048 mm

Connector Style :

D-Sub, Combo

Length :

53.42mm

RoHS Status :

Non-RoHS Compliant

Series :

AMPLIMITE 109

Shell Material :

Steel

ELV :

Non-Compliant

Moisture Sensitivity Level (MSL) :

Not Applicable

Lead Free :

Contains Lead

Max Operating Temperature :

125°C

Wire Gauge (Max) :

18 AWG

Orientation :

Straight

Wire Gauge (Min) :

8 AWG

Termination :

Crimp

Factory Lead Time :

11 Weeks

Mount :

Cable, Free Hanging

Shell Material, Finish :

Steel, Cadmium Plated

Plating :

Cadmium

Current Rating :

7.5A

Contact Type :

Coax and Signal

Note :

Contacts Not Included

Shell Size, Connector Layout :

3 DB B - 9W4

Number of Contacts :

9
