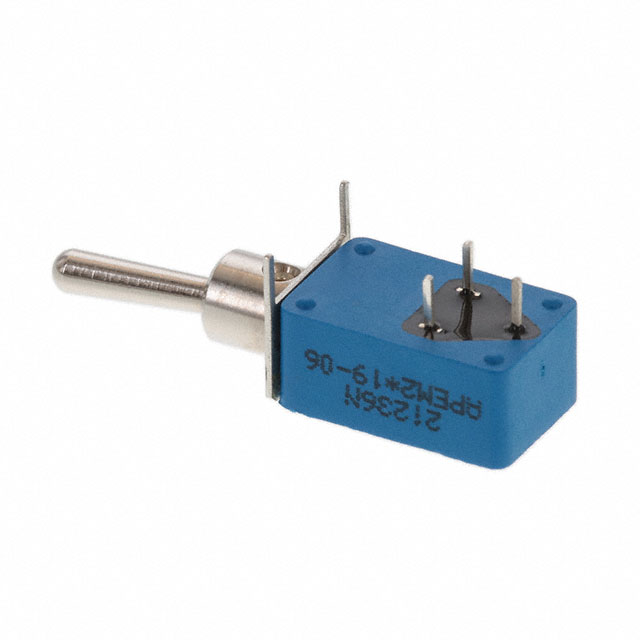

21236NA

Manufacturer :

APEM Inc.

Product Category :

Length :

11mm

Factory Lead Time :

5 Weeks

Max Voltage Rating (AC) :

250V

Actuator Material :

Brass, Chrome Plated

Body Height :

7.7mm

Max Current Rating :

4A

Switch Type :

TOGGLE SWITCH

JESD-609 Code :

e4

Series :

21000N

Termination Style :

PC Pin

Additional Feature :

LOW PROFILE

Switch Function :

On-On

Contact Current(DC)-Max :

4A

Termination :

PC Pin

Voltage - Rated DC :

30V

Mechanical Life :

100000 cycles

Number of Pins :

1

Current Rating (Amps) :

4A AC/DC

Max Voltage Rating (DC) :

30V

Packaging :

Bulk

Depth :

35.5mm

Contact Current Rating :

4A

Contact Current(AC)-Max :

4A

Current Rating :

4A

Mounting Type :

Through Hole, Right Angle

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Bushing Thread :

Unthreaded

Pbfree Code :

yes

Operating Temperature :

-40°C~85°C

Throw Configuration :

SPDT, SPST

Electrical Life :

20,000 Cycles

Contact (DC) Max Rating R Load :

4A@30VDC

Mount :

Brackets, Through Hole

RoHS Status :

ROHS3 Compliant

Orientation :

RIGHT ANGLE

ECCN Code :

EAR99

Actuator Type :

Standard Round

Contact Resistance :

20mOhm

Circuit :

SPDT

Sealing :

EPOXY TERMINAL SEALED

Contact Material :

Silver

HTS Code :

8536.50.90.65

Voltage - Rated AC :

125V

Illumination :

Non-Illuminated

Actuator Length :

11.50mm
