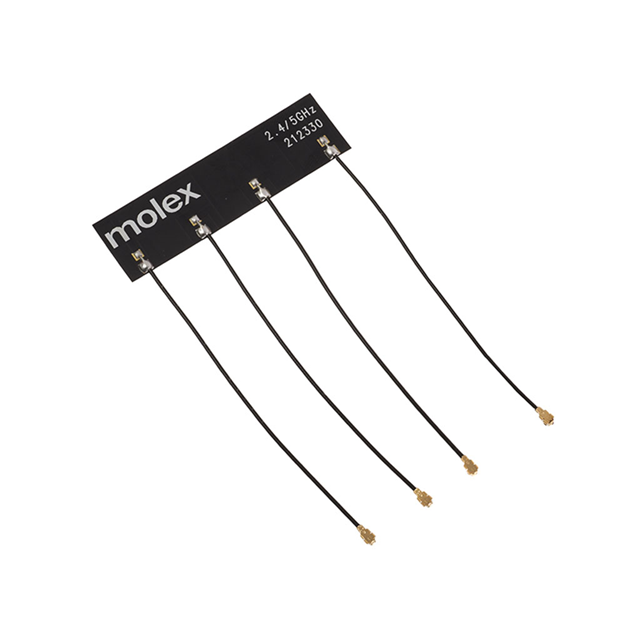

2123300200
Or copy the link below:
- Mfr.Part #
- 2123300200
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 2.4/5GHZ MIMO 4X4 FLEXIBLE ANTEN
- Stock
- 3,001
- In Stock ：
- 3,001
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- RF Antennas
- Height (Max) :
- 0.004" (0.10mm)
- Ingress Protection :
- -
- Mounting Style :
- Adhesive Mount
- Base Product Number :
- 212330
- RoHS :
- Details
- Product :
- PCB Antennas
- VSWR :
- -
- Series :
- 212330
- Maximum Operating Temperature :
- + 85 C
- Product Type :
- 2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
- Package :
- Tray
- Packaging :
- Bulk
- Type :
- MIMO Antenna
- Width :
- 20 mm
- RF Family/Standard :
- 802.15.4, Bluetooth, WiFi
- Antenna Type :
- Flat Patch
- Termination Style :
- Connector
- Return Loss :
- -5dB, -9dB, -10dB
- Mounting Type :
- Adhesive
- Product Status :
- Active
- Subcategory :
- Antennas
- Features :
- Cable - 200mm
- Connector Type :
- IPEX, UFL
- Frequency Group :
- UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Termination :
- U.FL (UMCC), IPEX MHF1
- Brand :
- Molex
- Style :
- T-Bar Flex
- Manufacturer :
- Molex
- Length :
- 70 mm
- Polarization :
- Linear
- Antenna Connector Type :
- IPEX MHF
- Power Rating :
- 2 W
- Gain :
- 3.2dBi, 4.3dBi
- Height :
- 0.1 mm
- Product Category :
- Antennas
- Frequency (Center/Band) :
- 2.44GHz, 5.5GHz
- Minimum Operating Temperature :
- - 40 C
- Impedance :
- 50 Ohms
- Center Frequency :
- 2450 MHz, 5500 MHz
- Number of Bands :
- 2
- Frequency Range :
- 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.85GHz
- Applications :
- Bluetooth, Thread, Wi-Fi, Zigbee?
- Cable Type :
- 200 mm Coax
- Cable Length :
- 200mm
- Datasheets
- 2123300200
2123300200 Documents
2 Bands Flat Patch UHF (2GHz ~ 3GHz), SHF (f > 4GHz) Adhesive U.FL (UMCC), IPEX MHF1 2.44GHz, 5.5GHz 3.2dBi, 4.3dBi Bulk 0.004" (0.10mm) Bluetooth, Thread, Wi-Fi, Zigbee?
2123300200 Overview
Since it is a type MIMO Antenna, RF Antenna has a wide range of applications.RF Antennas can be generalized using Adhesive.An Antenna RF from the series 212330.An enclosure of Bulk is used to package the RF modulator.
2123300200 Features
Type of MIMO Antenna
With Adhesive
212330 series
2123300200 Applications
There are a lot of Molex
2123300200 RF Antennas applications.
- Inverters
- Satellites
- Transmission
- Cellphones
- Laptops
- Marine Navigation
- Avionics
- GPS
- GLONASS
- BeiDou
