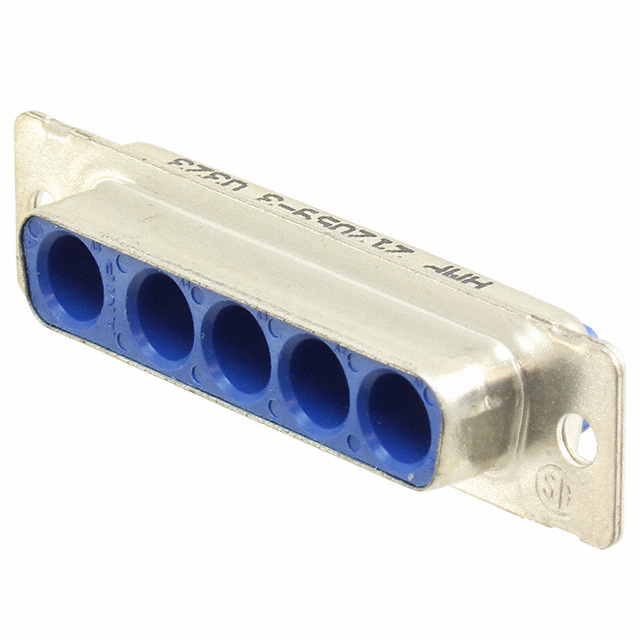

212059-3

Manufacturer :

TE Connectivity Aerospace Defense and Marine

Product Category :

D-Sub, D-Shaped Connector Housings

Series :

AMPLIMITE 109

MIL Conformance :

No

Plating :

Tin

Color :

Black

Length :

53.03mm

Lead Free :

Contains Lead

Connector Style :

D-Sub, Combo

Filter Feature :

No

Connector Type :

Receptacle for Female Contacts

Gender :

Receptacle

Dielectric Material :

Polyester, Glass Filled

Number of Rows :

1

Mounting Type :

Free Hanging (In-Line)

Mixed Contacts :

yes

Note :

Contacts Not Included

Flange Feature :

Housing/Shell (Unthreaded)

Shell Material :

Steel

Mount :

Cable, Free Hanging

Number of Contacts :

5

Operating Temperature :

-50°C~125°C

Package / Case :

100

Option :

GENERAL PURPOSE

Published :

2005

Reference Standard :

UL

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

IEC Conformance :

No

Shell Size, Connector Layout :

3 DB B - 5W5

Sealable :

No

ELV :

Non-Compliant

Dielectric Withstanding Voltage :

800VAC V

Housing Material :

Polyester

Shell Material, Finish :

Steel, Tin Plated

ECCN Code :

EAR99

Reliability :

COMMERCIAL

Depth :

14.78mm

Factory Lead Time :

9 Weeks

Contact Type :

Coax or Power

Housing Color :

Blue

Shell Finish Thickness :

200μin 5.08μm

Number of Positions :

5 (Coax or Power)

Contact Resistance :

6mOhm

Orientation :

Straight

Termination :

Solder

Body Breadth :

0.494 inch

Packaging :

Bulk

Number of Conductors :

ONE

Current Rating :

32A

Empty Shell :

No

Circuit Application :

Power

Hole Diameter :

3.048 mm

RoHS Status :

Non-RoHS Compliant

DIN Conformance :

No
