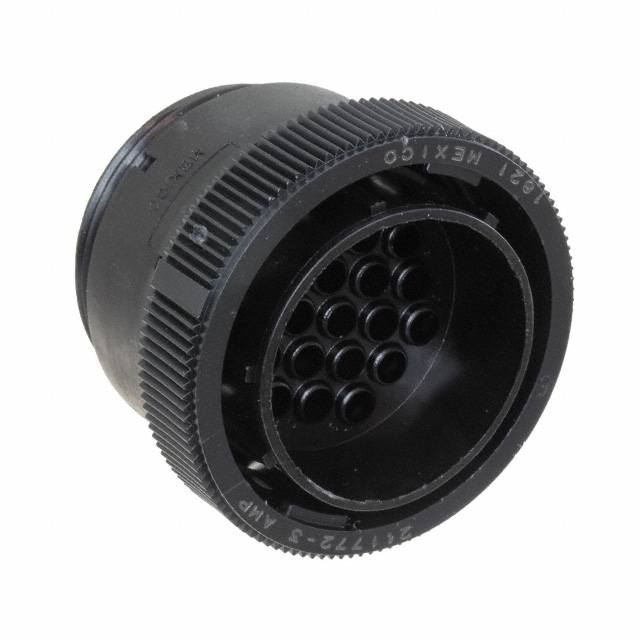

211772-3
Or copy the link below:
- Mfr.Part #
- 211772-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG HSG MALE 19POS INLINE
- Stock
- 3
- In Stock ：
- 3
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Housings
- Type :
- For Male Pins
- Filter Feature :
- No
- Number of Positions :
- 19
- Published :
- 2009
- Pbfree Code :
- yes
- IEC Conformance :
- No
- Contact Type :
- Crimp
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 8 Weeks
- Total Number of Contacts :
- 19
- Housing Color :
- Black
- Sealable :
- No
- Housing Material :
- Nylon
- Feature :
- Coupling Nut
- Shielding :
- Unshielded
- Series :
- CPC Series 1
- Operating Supply Voltage :
- 600V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Free Hanging (In-Line)
- Insulation Diameter :
- 3.81 mm
- RoHS Status :
- RoHS Compliant
- Connector Type :
- Plug Housing
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Length :
- 34.67mm
- Orientation :
- A
- Operating Temperature :
- -55°C~105°C
- Lead Free :
- Lead Free
- MIL Conformance :
- No
- DIN Conformance :
- No
- Empty Shell :
- yes
- Contact Shape :
- Circular
- Number of Power Positions :
- 0
- Mating Retention :
- With
- VDE Tested :
- yes
- Note :
- Contacts Not Included
- Packaging :
- Bulk
- Contact Size :
- 16
- Shell Size - Insert :
- 23-19
- Insert Material :
- Thermoplastic
- Mount :
- Panel
- ELV :
- Compliant
- Fastening Type :
- Threaded
- Shell Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- 211772-3
Plug Housing Polyamide (PA66), Nylon 6/6, Glass Filled Free Hanging (In-Line) 19 Positions Bulk Threaded Unshielded Contacts Not Included CPC Series 1
211772-3 Overview
It comes in Plug Housing packaging.The device's mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.It belongs to the CPC Series 1 Series of products.This part shares lots of benefits with other For Male Pins products.When operating, it is possible to ensure that Coupling Nut is maintained.It is necessary to use a Panel socket in order to mount this part.
211772-3 Features
CPC Series 1 series
211772-3 Applications
There are a lot of TE Connectivity AMP Connectors
211772-3 Circular Connectors applications.
- Audio/Video devices
- Cell Phones
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
