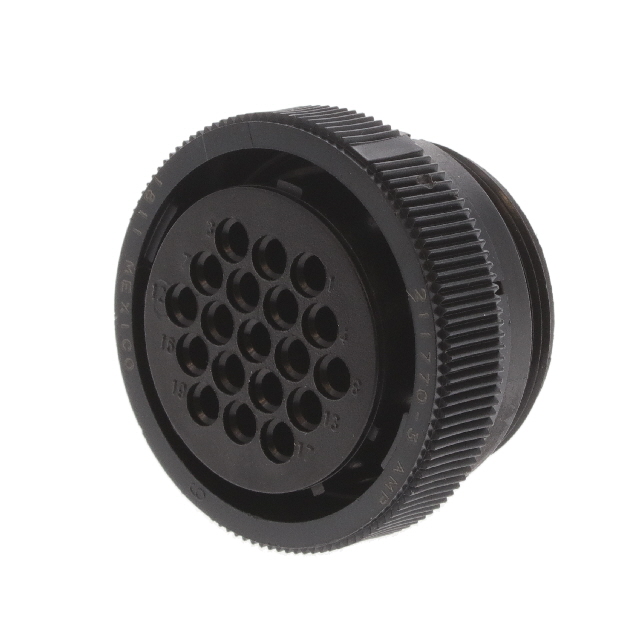

211770-3
Or copy the link below:
- Mfr.Part #
- 211770-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLG HSG FMALE 19POS INLINE
- Stock
- 161
- In Stock ：
- 161
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Housings
- Note :
- Contacts Not Included
- Sealable :
- No
- Flammability Rating :
- UL94 V-0
- Series :
- CPC Series 1
- Orientation :
- A
- Material Flammability Rating :
- UL94 V-0
- Operating Supply Voltage :
- 600V
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Number of Positions :
- 19
- Fastening Type :
- Threaded
- Shielding :
- Unshielded
- Housing Material :
- Nylon
- Contact Type :
- Crimp
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insert Material :
- Thermoplastic
- Published :
- 2004
- Factory Lead Time :
- 8 Weeks
- Number of Power Positions :
- 0
- Operating Temperature :
- -55°C~105°C
- MIL Conformance :
- No
- RoHS Status :
- RoHS Compliant
- IEC Conformance :
- No
- Connector Type :
- Plug Housing
- Housing Color :
- Black
- Filter Feature :
- No
- Insulation Diameter :
- 3.81 mm
- Contact Shape :
- Circular
- Shell Size - Insert :
- 23-19
- Feature :
- Coupling Nut
- Shell Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- DIN Conformance :
- No
- Contact Size :
- 16
- Mating Retention :
- With
- ELV :
- Compliant
- Empty Shell :
- No
- Pbfree Code :
- yes
- Total Number of Contacts :
- 19
- Packaging :
- Bulk
- VDE Tested :
- yes
- Type :
- For Female Sockets
- Mounting Type :
- Free Hanging (In-Line)
- Contact Gender :
- FEMALE
- Datasheets
- 211770-3
Plug Housing Polyamide (PA66), Nylon 6/6, Glass Filled Free Hanging (In-Line) 19 Positions Bulk Threaded Unshielded Contacts Not Included CPC Series 1
211770-3 Overview
A Plug Housing package is included with it.Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the CPC Series 1 Series of products.Other [0] products share many of the same benefits as this part.In operation, Coupling Nut may be maintained.
211770-3 Features
CPC Series 1 series
211770-3 Applications
There are a lot of TE Connectivity AMP Connectors
211770-3 Circular Connectors applications.
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
