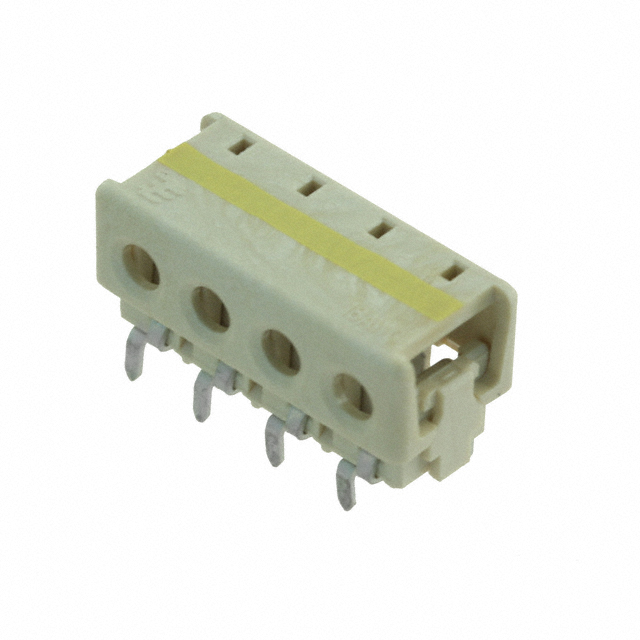

2106489-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Board In, Direct Wire to Board

Max Voltage Rating (DC) :

250.25kV

Orientation :

RIGHT ANGLE

Length :

17.7mm

Factory Lead Time :

9 Weeks

Plating Thickness :

5.08μm

Max Voltage Rating (AC) :

250V

Circuit Application :

Power

Contact Current Rating :

8.5A

Mounting Type :

Through Hole, Right Angle

ELV :

Compliant

Number of Positions Loaded :

All

Contact Material :

Copper

Max Operating Temperature :

221°C

Number of Positions :

4

RoHS Status :

RoHS Compliant

Connector Type :

Individual Wires

Published :

2011

Pitch :

3.9878mm

Packaging :

Tape and Reel (TR)

Wire Gauge :

18 AWG

Min Operating Temperature :

-40°C

Mount :

Cable, Through Hole

Current Rating :

8.5A

Termination :

Through Hole

PCB Thickness :

1.5748mm

Pbfree Code :

yes

Board-Side Pitch :

0.157 4.00mm

Cable Pitch :

0.157 4.00mm

REACH SVHC :

Unknown

Cable Termination :

IDC

Width :

7.747mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Keyed :

No

Depth :

7.75mm

Wire/Cable Gauge :

18 AWG

Height :

5.7912mm

Number of Rows :

1

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Wire/Cable Type :

Discrete

Contact Finish :

Tin

Color :

Natural

Flammability Rating :

UL94 V-0

Gender :

Receptacle

Insulation Diameter :

2.2 mm

Housing Material :

Polymer

Feature :

Closed End
