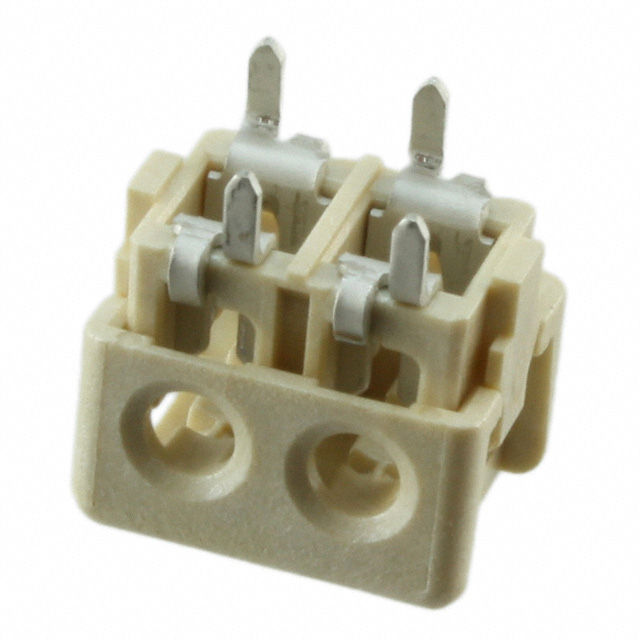

2106489-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Board In, Direct Wire to Board

Published :

2010

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

2

Pitch :

3.9878mm

Approval Agency :

CSA

Contact Finish :

Tin

Contact Plating :

Tin

Make First / Break Last :

No

Flammability Rating :

UL94 V-0

PCB Thickness :

1.5748mm

Min Operating Temperature :

-40°C

Lead Free :

Lead Free

Depth :

7.75mm

Termination :

IDT, Through Hole

Feature :

Closed End

Wire/Cable Type :

Discrete

RoHS Status :

RoHS Compliant

Number of Contacts :

2

Contact Current Rating :

8.5A

Length :

9.7mm

Mounting Type :

Through Hole, Right Angle

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Mount :

Through Hole

Radiation Hardening :

No

Width :

9.7mm

Number of Pins :

2

Packaging :

Tape and Reel (TR)

Wire Gauge :

18 AWG

Sealable :

No

Current Rating :

8A

Number of Rows :

1

Housing Color :

Natural

Cable Termination :

IDC

Connector Type :

Individual Wires

Max Voltage Rating (AC) :

250V

REACH SVHC :

Unknown

ELV :

Compliant

Orientation :

RIGHT ANGLE

Plating Thickness :

5.08μm

Voltage - Rated :

250V

Max Operating Temperature :

221°C

Max Voltage Rating (DC) :

250V

Cable Pitch :

0.157 4.00mm

Insulation Diameter :

2.2 mm

Gender :

Receptacle

Housing Material :

Polymer

Circuit Application :

Power

Color :

Natural

Number of Positions Loaded :

All

Contact Material :

Copper

Board-Side Pitch :

0.157 4.00mm

Keyed :

No

Factory Lead Time :

9 Weeks

Wire/Cable Gauge :

18 AWG

Height :

5.7912mm
