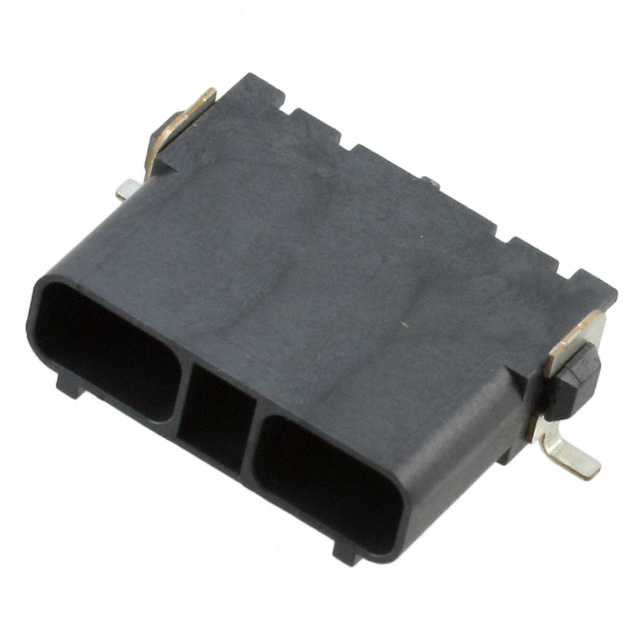

2106056-8
Or copy the link below:
- Mfr.Part #
- 2106056-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SSL HDR 4POS 3.5MM SOLDER
- Stock
- 5,894
- In Stock ：
- 5,894
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Solid State Lighting Connector Assemblies
- Mating Cycles :
- 30
- ELV :
- Compliant
- Housing Color :
- Black
- Keyed :
- yes
- Height :
- 7.64mm
- REACH SVHC :
- Unknown
- Width :
- 27.6098mm
- Length :
- 20.6502mm
- Min Operating Temperature :
- -40°C
- Current Rating :
- 5A
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Series :
- SlimSeal
- Published :
- 2003
- Operating Temperature :
- -40°C~105°C
- Fastening Type :
- Latch Lock
- Voltage - Rated :
- 400V
- Mount :
- Surface Mount
- Pitch :
- 0.138 3.50mm
- Wire/Cable Gauge :
- 18 AWG
- Mating Post Length :
- 6.477mm
- Sealable :
- yes
- Number of Positions :
- 4
- Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Color :
- Black
- Contact Finish :
- Tin
- Factory Lead Time :
- 16 Weeks
- Lead Free :
- Lead Free
- Feature :
- Solder Retention
- Max Current Rating :
- 5A
- RoHS Status :
- RoHS Compliant
- Contact Current Rating :
- 5A
- Radiation Hardening :
- No
- Max Voltage Rating (AC) :
- 250V
- Max Operating Temperature :
- 221°C
- Packaging :
- Cut Tape (CT)
- Contact Material :
- Brass
- Number of Rows :
- 1
- Make First / Break Last :
- No
- Depth :
- 20.66mm
- Material :
- Thermoplastic
- Connector Type :
- Header, Male Pins
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Number of Contacts :
- 4
- Current Rating (Amps) :
- 3.5A 22-24AWG ; 5A 18-20AWG
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Mounting Type :
- Surface Mount, Right Angle
- Style :
- Board to Cable/Wire
- Contact Plating :
- Tin
- Orientation :
- RIGHT ANGLE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 2106056-8
