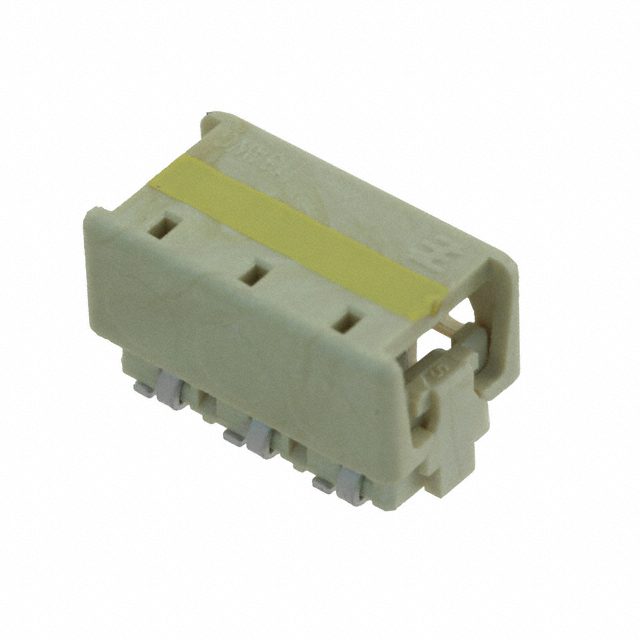

2106003-3
Or copy the link below:
- Mfr.Part #
- 2106003-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN WIRE IDC 3POS 18AWG SMD RA
- Stock
- 10,080
- In Stock ：
- 10,080
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Board In, Direct Wire to Board
- Length :
- 13.7mm
- Pbfree Code :
- yes
- Number of Positions :
- 3
- Orientation :
- RIGHT ANGLE
- Cable Pitch :
- 0.157 4.00mm
- REACH SVHC :
- No SVHC
- Circuit Application :
- Power
- Max Voltage Rating (AC) :
- 250V
- Keyed :
- No
- Number of Positions Loaded :
- All
- Pitch :
- 3.9878mm
- ELV :
- Compliant
- Wire/Cable Gauge :
- 18 AWG
- Min Operating Temperature :
- -40°C
- Connector Type :
- Individual Wires
- Packaging :
- Tape and Reel (TR)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- RoHS Compliant
- Wire/Cable Type :
- Discrete
- Contact Material :
- Copper
- Cable Termination :
- IDC
- Housing Material :
- Polymer
- Current Rating :
- 8A
- Voltage - Rated :
- 250V
- Mounting Type :
- Surface Mount, Right Angle
- Width :
- 13.7mm
- Max Voltage Rating (DC) :
- 250.25kV
- Gender :
- Receptacle
- Contact Current Rating :
- 8.5A
- Contact Finish :
- Tin
- Lead Free :
- Lead Free
- Board-Side Pitch :
- 0.157 4.00mm
- Published :
- 2010
- Termination :
- SMD/SMT, Solder
- Flammability Rating :
- UL94 V-0
- Height :
- 5.7912mm
- Wire Gauge :
- 18 AWG
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Insulation Diameter :
- 2.2 mm
- Max Operating Temperature :
- 221°C
- Factory Lead Time :
- 9 Weeks
- Approval Agency :
- CSA
- Feature :
- Closed End
- Number of Rows :
- 1
- Color :
- Natural
- Mount :
- Surface Mount
- Depth :
- 7.75mm
- Datasheets
- 2106003-3
2106003-3 datasheet pdf and Rectangular Connectors - Board In, Direct Wire to Board product details from TE Connectivity AMP Connectors stock available at Xinshop
