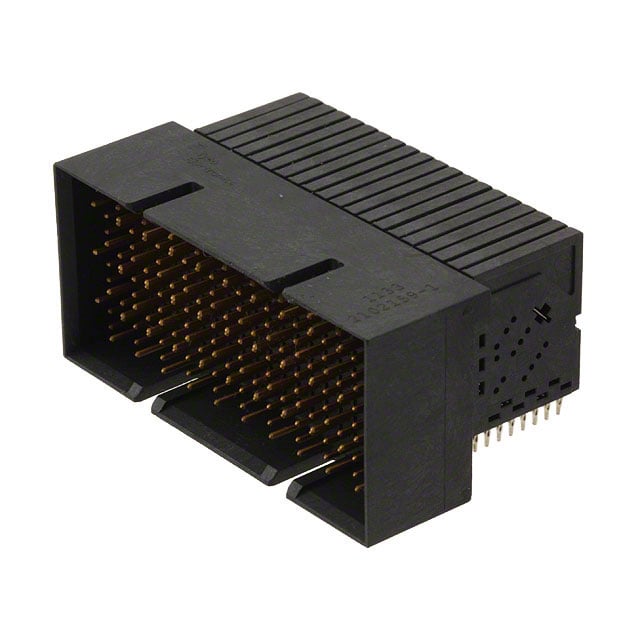

2102159-1
Or copy the link below:
- Mfr.Part #
- 2102159-1
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER 180POS EDGE MNT
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Specialized
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Packaging :
- Tray
- Published :
- 2012
- Housing Material :
- Polymer
- DIN Conformance :
- No
- Flammability Rating :
- UL94 V-0
- PCB Mounting Orientation :
- RIGHT ANGLE
- Gender :
- Male
- Row Spacing :
- 60 µm
- Pitch :
- 1.4mm
- Depth :
- 25.54mm
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 23 Weeks
- Contact Current Rating :
- 1.5A
- Contact Layout, Typical :
- 60 Differential Pairs, 60 Ground
- Filter Feature :
- No
- Shrouding :
- Fully Shrouded
- Number of Positions :
- 180
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Columns :
- 20
- Mixed Contacts :
- No
- MIL Conformance :
- No
- Option :
- GENERAL PURPOSE
- Series :
- Fortis Zd
- Termination :
- Press-Fit
- Contact Material :
- Copper
- Mating Alignment :
- Without
- Color :
- Black
- Number of Rows :
- 9
- Orientation :
- RIGHT ANGLE
- Connector Type :
- Header, Male Pins
- Material Flammability Rating :
- UL94 V-0
- Max Current Rating :
- 1.5A
- RoHS Status :
- Non-RoHS Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- ELV :
- Non-Compliant
- Mount :
- Edge, Through Hole
- IEC Conformance :
- No
- Length :
- 43mm
- Feature :
- Shielded
- REACH SVHC :
- Unknown
- Total Number of Contacts :
- 180
- Operating Temperature :
- -65°C~125°C
- Connector Usage :
- Daughtercard
- Contact Finish :
- Gold
- Current Rating :
- 1.5A
- Datasheets
- 2102159-1
Fortis Zd Series Header, Male Pins Press-Fit Gold Black 50.0μin 1.27μm 180 Positions Pitch: 1.4mm -65°C~125°C Tray Board Edge, Through Hole, Right Angle
2102159-1 Overview
Currently, it is packaged in Header, Male Pins.The mounting type of the device is Board Edge, Through Hole, Right Angle.A Tray case is used to package the product.A product of the Fortis Zd Series, it belongs to the range of products of that series.A number of features make the Shielded feature more powerful.Edge, Through Hole represents the mounting point for the part.-65°C~125°C Operating Temperature is the default operating temperature for the device.
2102159-1 Features
Fortis Zd series
2102159-1 Applications
There are a lot of TE Connectivity Aerospace, Defense and Marine
2102159-1 Backplane Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
