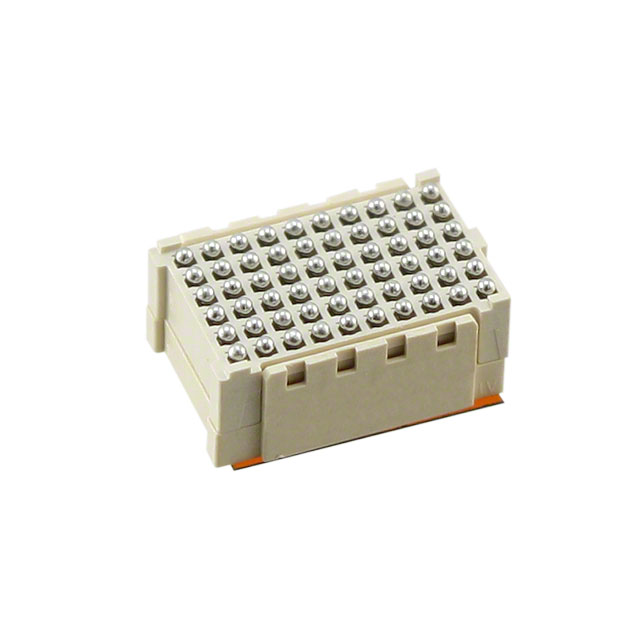

2102080-1

Manufacturer :

TE Connectivity Aerospace Defense and Marine

Product Category :

Headers, Receptacles, Female Sockets

Insulation Material :

Liquid Crystal Polymer (LCP)

Operating Supply Voltage :

250V

Contact Shape :

Square

Polarization Key :

POLARIZED HOUSING

Height :

5.7404mm

Contact Type :

Female Socket

Filter Feature :

No

Orientation :

Vertical

Feature :

Pick and Place

Plating Thickness :

50μin

Factory Lead Time :

32 Weeks

Operating Temperature :

-55°C~125°C

Contact Current Rating :

1.5A

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Stack Height :

10.0076mm

Total Number of Contacts :

60

Number of Conductors :

ONE

Mixed Contacts :

No

Insulation Height :

0.236 6.00mm

Style :

Board to Board

Series :

Mezalok

Contact Finish - Mating :

Gold

Mating Information :

2102079-1

Mating Contact Pitch :

0.05 inch

Stackable :

yes

Mating Alignment :

With

Contact Finish - Post :

Tin-Lead

ELV :

Non-Compliant

Contact Finish Thickness - Mating :

50.0μin 1.27μm

Number Of PCB Rows :

6

RoHS Status :

Non-RoHS Compliant

Body Breadth :

0.375 inch

Mounting Type :

Surface Mount

Connector Type :

Receptacle

Fastening Type :

Push-Pull

Row Spacing - Mating :

0.050 (1.27mm)

Sealable :

No

Pitch - Mating :

0.050 1.27mm

Stack Height (Mating) :

10mm

Terminal Pitch :

1.27mm

Termination :

Solder

Depth :

9.42mm

Number of Positions :

60

Number of Rows :

6

Packaging :

Tape and Reel (TR)

Option :

GENERAL PURPOSE

Length :

13.9mm

Contact Material :

BERYLLIUM COPPER

Number of Positions Loaded :

All

Voltage - Rated :

250VAC

Mount :

Surface Mount

Housing Color :

Natural

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

REACH SVHC :

Unknown

Published :

2010

Housing Material :

Polymer

PCB Contact Pattern :

RECTANGULAR
