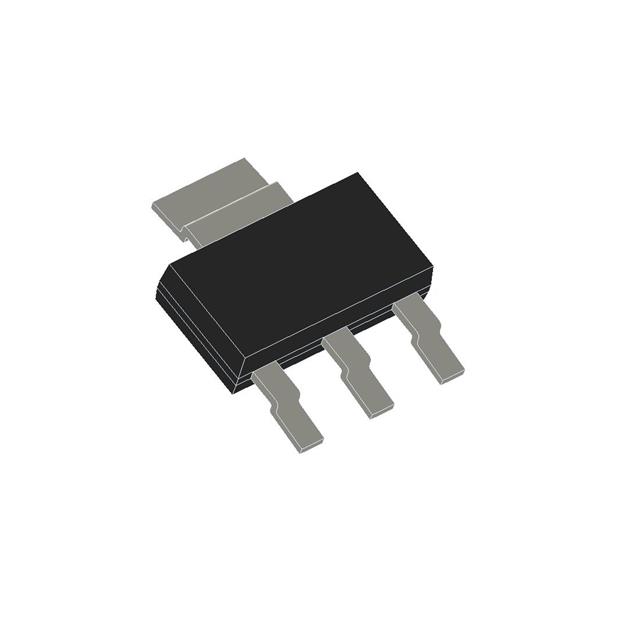

20CJQ045

Manufacturer :

SMC Diode Solutions

Product Category :

Diodes - Rectifiers - Arrays

Voltage - Forward (Vf) (Max) @ If :

540mV @ 1A

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Mounting Type :

Surface Mount

Published :

2009

Packaging :

Tube

Element Configuration :

Common Cathode

Number of Pins :

4

ECCN Code :

EAR99

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Number of Terminations :

4

Number of Elements :

2

Voltage - Rated DC :

45V

Output Current-Max :

2A

Max Surge Current :

390A

Mount :

Surface Mount

Min Operating Temperature :

-55°C

Diode Configuration :

1 Pair Common Cathode

Qualification Status :

Not Qualified

Peak Non-Repetitive Surge Current :

390A

RoHS Status :

Non-RoHS Compliant

Diode Type :

Schottky

Lead Free :

Contains Lead

Terminal Form :

Gull wing

Current Rating :

2A

Pin Count :

4

Number of Phases :

1

Max Reverse Leakage Current :

100μA

Application :

GENERAL PURPOSE

Diode Element Material :

SILICON

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Capacitance :

70pF

Operating Temperature - Junction :

-55°C~150°C

Package / Case :

TO-261-4, TO-261AA

Reach Compliance Code :

Unknown

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Operating Temperature :

150°C

Max Reverse Voltage (DC) :

45V

Forward Voltage :

670mV

Additional Feature :

FREE WHEELING DIODE

Average Rectified Current :

1A

Terminal Position :

Dual

Current - Reverse Leakage @ Vr :

100μA @ 45V
