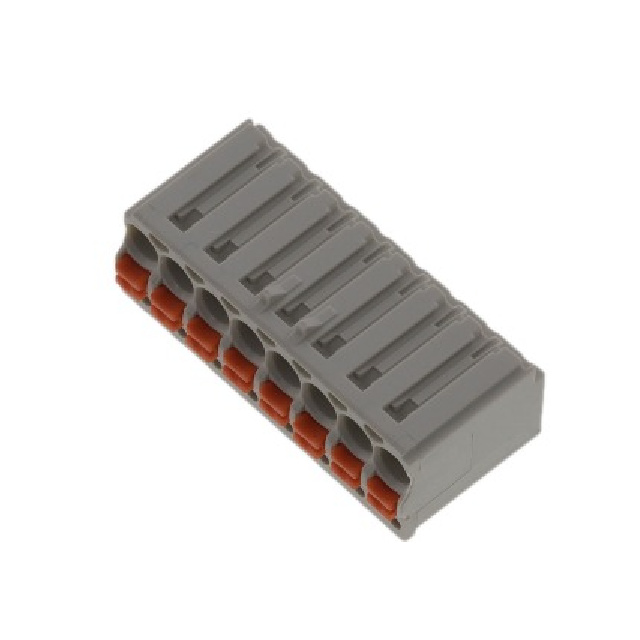

2091-1128

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Temperature :

-60 to 100 Degrees C

Inflammability class of insulation material according to with UL94 :

V0

Insulation Height :

0.551 (14.00mm)

Operating Temperature :

-60°C ~ 100°C

Connectable conductor cross section solid-core :

0.2 - 1.5

Voltage - IEC :

320 V

Current :

10 Amps

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 1.5

Positions Per Level :

8

Package :

Box

EU RoHS :

Compliant

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 0.75

ECCN (US) :

EAR99

Header Orientation :

-

Pitch :

0.138 (3.50mm)

Housing Material :

Polyphthalamide (PPA), Glass Filled

Termination Style :

Screwless - Leg Spring, Push-In Spring

Stripping Length :

8 to 9 MilliMeters

Current - IEC :

10A

Depth :

14

Material Flammability Rating :

UL94 V-0

Wire Strip Length :

8-9mm

Voltage - UL :

300 V

Wire Gauge or Range - mm² :

0.2-1.5mm²

Wire Size :

24~14 AWG

Current - UL :

10 A

Mounting Type :

Free Hanging (In-Line)

Connectable conductor cross section multi-wired :

0.2 - 1.5

Contact Tail Length :

-

Type :

Plug, Female Sockets

Automotive :

No

Number of Contacts :

8 Pole

Torque - Screw :

-

Voltage :

300 Volts

Contact Finish :

Tin

Rated current In :

10

Ingress Protection :

-

Width :

3.5

HTS :

8536.69.40.40

Approvals :

CB;CSA;UR

Plug Wire Entry :

90°

Transparent :

No

ECCN Code :

EAR99

Color :

Gray

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

PPAP :

No

Number of Levels :

1

Manufacturer :

Wago

Length :

11.4

Series :

picoMAX® 3.5

Screw Size :

-

Product Status :

Active

Height :

11.4

Features :

Push Button Actuated

Number of Positions :

8

Wire Gauge or Range - AWG :

14-24 AWG

Contact Mating Finish :

Tin

Reach Compliance Code :

Compliant

Contact Material :

Electrolytic Copper

HTS Code :

8536.69.40.40
