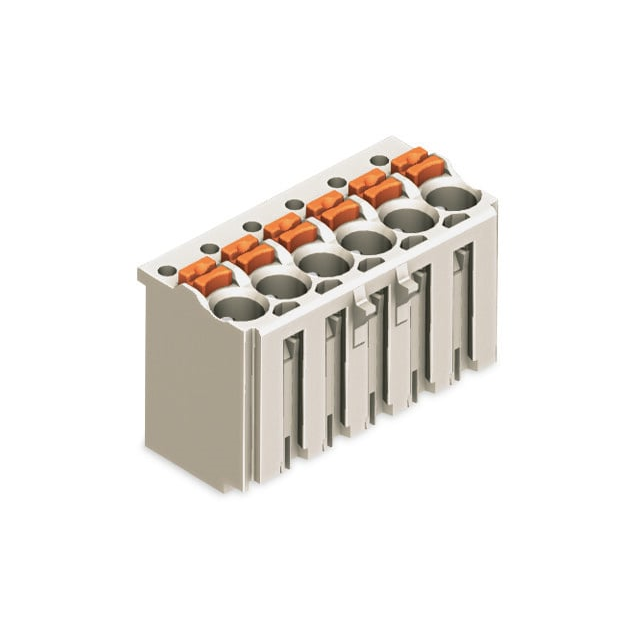

2091-1125

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Width :

3.5

Contact Material :

Electrolytic Copper

Current - IEC :

10A

Manufacturer :

Wago

Number of Positions :

5

Approvals :

CB;CSA;UR

Color :

Gray

Connectable conductor cross section multi-wired :

0.2 - 1.5

Depth :

14

Series :

picoMAX® 3.5

Package :

Box

Header Orientation :

-

ECCN (US) :

EAR99

Pitch :

0.138 (3.50mm)

Wire Gauge or Range - AWG :

14-24 AWG

EU RoHS :

Compliant

Features :

Push Button Actuated

Housing Material :

Polyphthalamide (PPA), Glass Filled

Contact Tail Length :

-

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 0.75

Insulation Height :

0.551 (14.00mm)

Current :

10 Amps

Connectable conductor cross section solid-core :

0.2 - 1.5

Flammability Rating :

UL94 V-0

Length :

11.4

Wire Size :

24~14 AWG

RoHS :

Non-Compliant

Plug Wire Entry :

90°

Material Flammability Rating :

UL94 V-0

Type :

Plug, Female Sockets

Screw Size :

-

Stripping Length :

8 to 9 MilliMeters

Operating Temperature :

-60°C ~ 100°C

Torque - Screw :

-

Contact Finish :

Tin

Height :

11.4

HTS :

8536.69.40.40

PPAP :

No

Positions Per Level :

5

Transparent :

No

Voltage - UL :

300 V

Mounting Type :

Free Hanging (In-Line)

Number of Contacts :

5 Pole

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 1.5

Wire Gauge or Range - mm² :

0.2-1.5mm²

Temperature :

-60 to 100 Degrees C

Contact Mating Finish :

Tin

Ingress Protection :

-

Voltage :

300 Volts

Automotive :

No

Voltage - IEC :

320 V

Termination Style :

Screwless - Leg Spring, Push-In Spring

Inflammability class of insulation material according to with UL94 :

V0

Rated current In :

10

Product Status :

Active

Current - UL :

10 A

Number of Levels :

1

Wire Strip Length :

8-9mm
