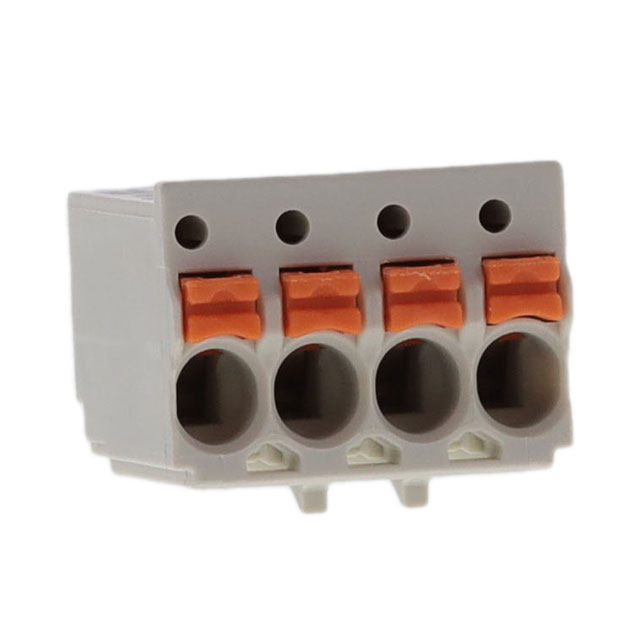

2091-1124

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Product Height (mm) :

14

Wire Size :

24-14 AWG

Size :

24-14 AWG

Mounting Type :

Free Hanging (In-Line)

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 0.75

Rated Voltage :

320V

Current :

10 A

Transparent :

No

Manufacturer :

Wago

Wire Gauge or Range - mm² :

0.2-1.5mm²

Number of Rows :

1

Insulation Height :

0.551 (14.00mm)

Type :

PC Terminal Block

Minimum Operating Temperature (°C) :

-60

Rated Current :

10A

Number of Circuits :

3

Header Orientation :

-

Voltage - IEC :

320 V

Number of Contacts :

4

Wire Gauge or Range - AWG :

14-24 AWG

Temperature :

-60-100 °C

Operating Temperature :

-60°C ~ 100°C

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section multi-wired :

0.2 - 1.5

Maximum Operating Temperature (°C) :

100

Termination Method :

Clamp

PPAP :

No

Ingress Protection :

-

Torque - Screw :

-

Plug Wire Entry :

90°

EU RoHS :

Compliant

Color :

Gray

Screw Size :

-

Mounting :

Cable Mount

HTS :

8536.69.40.40

Number of Positions :

4

Wire Strip Length :

8-9mm

Voltage :

300 V

RoHS :

Non-Compliant

Gender :

F

Material Flammability Rating :

UL94 V-0

Pitch :

0.138 (3.50mm)

Package :

Box

Approvals :

CB, CSA, UR

Body Orientation :

Straight

ECCN (US) :

EAR99

Product Depth (mm) :

11.4

Stripping Length :

8-9 mm

Current - IEC :

10A

Flammability Rating :

UL94 V-0

Product Length (mm) :

10.5

Lead Free :

Lead Free

Packaging :

Box

Terminal Pitch (mm) :

3.5

Tradename :

CAGE CLAMP?

Series :

picoMAX® 3.5

Positions Per Level :

4

Contact Mating Finish :

Tin

Width :

3.5

Current - UL :

10 A

Contact Material :

Electrolytic Copper

Depth :

14

Housing Material :

Polyphthalamide (PPA), Glass Filled

Product Status :

Active

Height :

11.4

Termination Style :

Screwless - Leg Spring, Push-In Spring

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 1.5

Voltage - UL :

300 V

Maximum Current Rating (A) :

10

Maximum Voltage Rating :

320V

Contact Finish :

Tin

Product Weight (g) :

1.8

Wire Size (AWG) :

24AWG to 14AWG

Automotive :

No

Length :

11.4

Housing Color :

Light Gray

Connectable conductor cross section solid-core :

0.2 - 1.5

Features :

Push Button Actuated

Contact Tail Length :

-

Rated current In :

10

Number of Levels :

1
