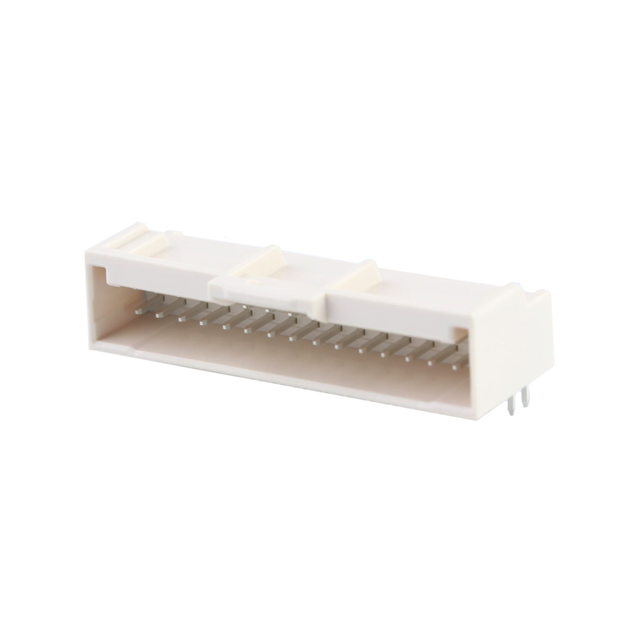

2086593240

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Series :

208659

Fastening Type :

Latch Lock

Termination :

Solder

Applications :

-

Features :

-

Tradename :

iGrid

Insulation Color :

Beige

Product :

Headers

Application :

Signal, Wire-to-Board

Material Flammability Rating :

UL94 V-0

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Type :

SHROUDED

Operating Temperature :

-40°C ~ 105°C

Mated Stacking Heights :

-

Packaging :

Tray

Contact Finish - Mating :

Gold

Voltage Rating :

250 VAC/DC

IP Rating :

-

Contact Type :

-

Package :

Tray

Mounting Style :

Through Hole

Number of Positions Loaded :

All

Row Spacing :

2 mm

Ingress Protection :

-

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Maximum Operating Temperature :

+ 105 C

Base Product Number :

208659

Termination Style :

Solder Pin

Contact Gender :

Pin (Male)

Connector Type :

PLUG

Overall Contact Length :

-

Contact Material :

Brass

Current Rating :

2 A

Shrouding :

Shrouded - 4 Wall

Housing Gender :

-

Mounting Angle :

RIGHT ANGLE

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Pitch :

2 mm

RoHS :

Details

Contact Shape :

Square

Number of Rows :

2 Row

Mounting Type :

Through Hole, Right Angle

Housing Material :

Polyamide (PA)

Minimum Operating Temperature :

- 40 C

Number of Positions :

32 Position

Contact Finish - Post :

Tin

Insulation Height :

0.327 (8.30mm)

Style :

Board to Cable/Wire

Flammability Rating :

UL 94 V-0

Contact Plating :

Gold

Current Rating (Amps) :

Varies by Wire Gauge

Pitch - Mating :

0.079 (2.00mm)

Contact Length - Mating :

-

Contact Length - Post :

0.126 (3.20mm)

Product Status :

Active

Termination Post Length :

3.2 mm

Row Spacing - Mating :

0.079 (2.00mm)
