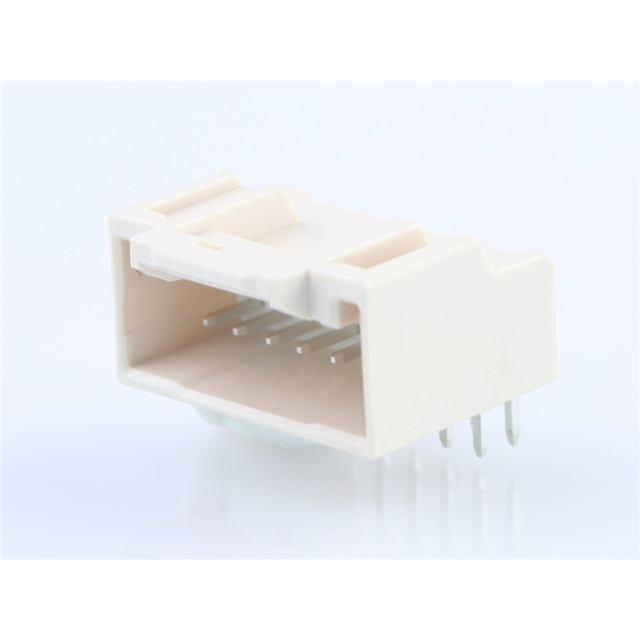

2086591640

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Insulation Height :

0.327 (8.30mm)

Termination Style :

Solder Pin

Mounting Type :

Through Hole, Right Angle

Mounting Angle :

RIGHT ANGLE

Mounting Style :

Through Hole

Minimum Operating Temperature :

- 40 C

Type :

SHROUDED

Number of Rows :

2 Row

Contact Type :

-

Maximum Operating Temperature :

+ 105 C

IP Rating :

-

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Material Flammability Rating :

UL94 V-0

Ingress Protection :

-

Contact Length - Mating :

-

Package :

Tray

Base Product Number :

208659

Row Spacing :

2 mm

Mated Stacking Heights :

-

Product :

Headers

Housing Gender :

-

Tradename :

iGrid

Termination Post Length :

3.2 mm

Contact Finish - Mating :

Gold

Application :

Signal, Wire-to-Board

Current Rating :

2 A

Insulation Color :

Natural

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Shrouding :

Shrouded - 4 Wall

Contact Shape :

Square

Style :

Board to Cable/Wire

Contact Plating :

Gold

Features :

-

Fastening Type :

Latch Lock

Number of Positions :

16 Position

Packaging :

Tray

Contact Length - Post :

0.126 (3.20mm)

Operating Temperature :

-40°C ~ 105°C

Voltage Rating :

250 VAC/DC

Termination :

Solder

Row Spacing - Mating :

0.079 (2.00mm)

Pitch :

2 mm

Pitch - Mating :

0.079 (2.00mm)

Number of Positions Loaded :

All

Contact Material :

Brass

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Applications :

-

Current Rating (Amps) :

Varies by Wire Gauge

Contact Finish - Post :

Tin

Housing Material :

Polyamide (PA)

Contact Gender :

Pin (Male)

Overall Contact Length :

-

RoHS :

Details

Connector Type :

PLUG

Flammability Rating :

UL 94 V-0

Product Status :

Active

Series :

208659
