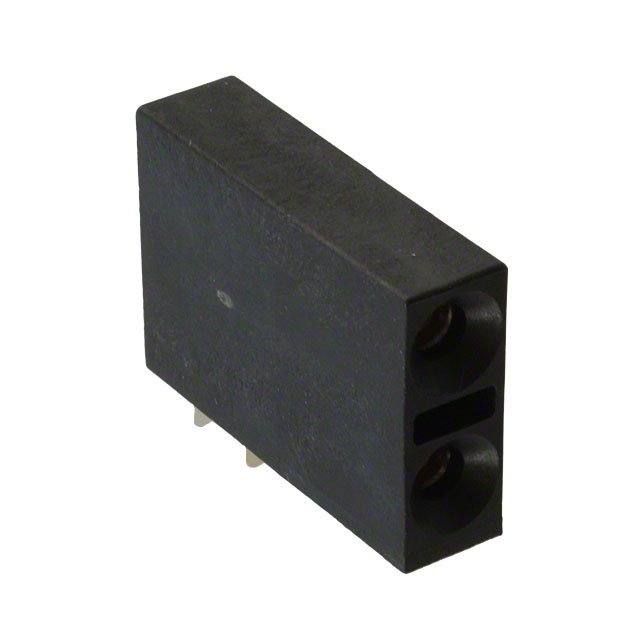

2085181-1
Or copy the link below:
- Mfr.Part #
- 2085181-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT POWER 2POS PCB
- Stock
- 38,895
- In Stock ：
- 38,895
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Number of Contacts :
- 2
- Plating :
- Silver
- Orientation :
- RIGHT ANGLE
- Voltage - Rated :
- 250V
- Flammability Rating :
- UL94 V-0
- Radiation Hardening :
- No
- PCB Thickness :
- 1.57mm
- Number of Positions Loaded :
- All
- Width :
- 7.6mm
- Connector Type :
- Receptacle, Female Sockets
- Min Operating Temperature :
- -40°C
- Number of Positions :
- 2
- Pitch :
- 9.906mm
- Height :
- 19.5mm
- Length :
- 28.99918mm
- Contact Layout, Typical :
- 2 Power
- Housing Material :
- Thermoplastic
- Number of Signal Positions :
- 0
- Max Operating Temperature :
- 221°C
- Contact Finish :
- Silver
- Voltage - Rated DC :
- 250V
- Gender :
- Receptacle
- Connector Style :
- Power
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Mounting Type :
- Through Hole, Right Angle
- Operating Supply Voltage :
- 250V
- Approval Agency :
- UL
- Current Rating (Amps) :
- 35A
- Operating Temperature :
- -40°C~105°C
- Factory Lead Time :
- 9 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ELV :
- Compliant
- Sealable :
- No
- REACH SVHC :
- Unknown
- Published :
- 2010
- Row Spacing :
- 10 mm
- RoHS Status :
- RoHS Compliant
- PCB Mounting Orientation :
- RIGHT ANGLE
- Color :
- Black
- Packaging :
- Tray
- Material Flammability Rating :
- UL94 V-0
- Contact Retention :
- With
- Contact Current Rating :
- 25A
- Current Rating :
- 35A
- Number of Power Positions :
- 2
- Contact Finish Thickness :
- 200.0μin 5.08μm
- Series :
- ICCON, Elcon
- Housing Color :
- Black
- Contact Gender :
- FEMALE
- Mount :
- Through Hole
- Contact Plating :
- Silver
- Number of Rows :
- 1
- Circuit Application :
- Power
- Plating Thickness :
- 5.08μm
- Termination :
- Press-Fit
- Datasheets
- 2085181-1
ICCON, Elcon Series Receptacle, Female Sockets Press-Fit Silver Black 200.0μin 5.08μm 2 Positions Pitch: 9.906mm -40°C~105°C Tray Through Hole, Right Angle
2085181-1 Overview
Packaging is in the form of Receptacle, Female Sockets.This device has a Through Hole, Right Angle mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the ICCON, Elcon Series.If the temperature is below 221°C, it's best to use it.-40°C is the minimum temperature for this device.There is a mounting hole at Through Hole.Devices operate at -40°C~105°C operating temperatures.A supply voltage of 250V is necessary for this Backplane Connector to work.
2085181-1 Features
ICCON, Elcon series
2085181-1 Applications
There are a lot of TE Connectivity AMP Connectors
2085181-1 Backplane Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
