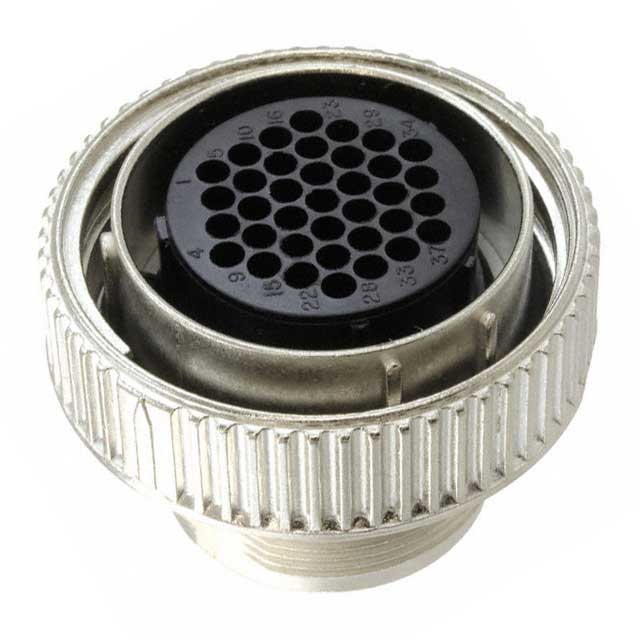

208470-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Circular Connector Housings

Shell Material :

ZINC ALLOY

MIL Conformance :

No

Total Number of Contacts :

37

Insert Material :

Thermoplastic

Contact Gender :

FEMALE

Contact Size :

16

Operating Supply Voltage :

600V

Insulation Diameter :

3.81 mm

Pbfree Code :

yes

Material Flammability Rating :

UL94 V-0

Type :

For Female Sockets

Note :

Contacts Not Included

Published :

1998

Filter Feature :

No

RoHS Status :

RoHS Compliant

IEC Conformance :

No

Feature :

Coupling Nut

Shielding :

Shielded

Contact Type :

Crimp

Lead Free :

Lead Free

Contact Shape :

Circular

Length :

39.62mm

ELV :

Compliant

Number of Ports :

1

Series :

CMC Series 1

Connector Type :

Plug Housing

Lifecycle Status :

ACTIVE (Last Updated: 6 days ago)

Mounting Type :

Free Hanging (In-Line)

Ingress Protection :

Environment Resistant

Shell Size - Insert :

28-37

Mating Retention :

With

Operating Temperature :

-55°C~125°C

Packaging :

Bulk

Gender :

Receptacle

Factory Lead Time :

16 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Fastening Type :

Threaded

DIN Conformance :

No

Number of Positions :

37

VDE Tested :

No

Package / Case :

Metal

Sealable :

yes

Flammability Rating :

UL94 V-0

Option :

GENERAL PURPOSE

Empty Shell :

yes

Mount :

Cable, Free Hanging

Orientation :

Keyed

Number of Power Positions :

0

Shell Finish :

Nickel

Housing Color :

Silver
