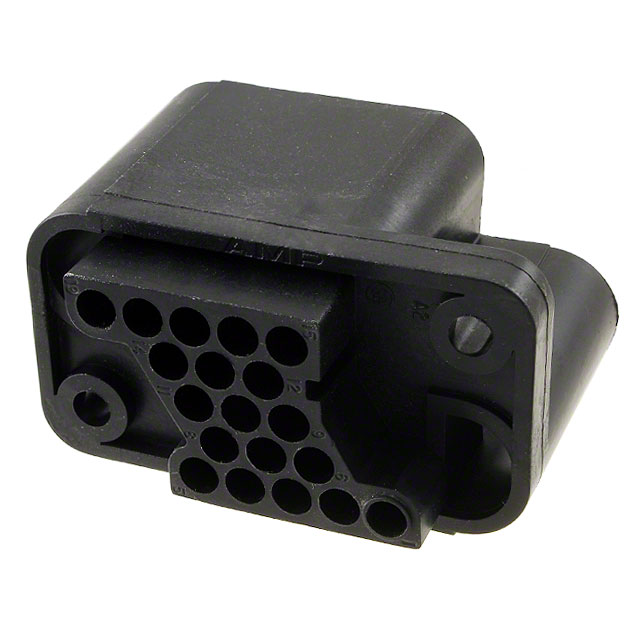

208209-1
Or copy the link below:
- Mfr.Part #
- 208209-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG HSG DRAWER 19POS BLK
- Stock
- 136
- In Stock ：
- 136
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Backplane Connector Housings
- Connector Style :
- Drawer
- Published :
- 2009
- VDE Tested :
- yes
- IEC Conformance :
- No
- Contact Finish - Mating :
- NOT SPECIFIED
- Filter Feature :
- No
- Mixed Contacts :
- No
- Max Operating Temperature :
- 130°C
- Note :
- Contacts Not Included
- Panel Thickness :
- 2.3114mm
- Voltage - Rated :
- 600V
- Length :
- 54.94mm
- Max Voltage Rating (AC) :
- 600V
- Connector Usage :
- Receptacle
- Width :
- 30.78mm
- Contact Material :
- NOT SPECIFIED
- Factory Lead Time :
- 8 Weeks
- Color :
- Black
- Approval Agency :
- UL
- Orientation :
- Straight
- DIN Conformance :
- No
- Termination :
- Solder
- Packaging :
- Bulk
- Wire/Cable Type :
- Discrete
- Mounting Type :
- Panel Mount
- Min Operating Temperature :
- -55°C
- Connector Type :
- Housing for Male Pins
- Feature :
- Mating Guide
- Number of Contacts :
- 19
- Pbfree Code :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Polyester
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- RoHS Status :
- RoHS Compliant
- Flammability Rating :
- UL94 V-0
- Number of Rows :
- 5
- Row Spacing :
- 4.39 mm
- Mount :
- Panel
- Empty Shell :
- yes
- Series :
- Metrimate
- Operating Supply Voltage :
- 600V
- MIL Conformance :
- No
- Pitch :
- 0.200 5.08mm
- ELV :
- Compliant
- Number of Positions :
- 19 (Power)
- Depth :
- 40.77mm
- Datasheets
- 208209-1
208209-1 datasheet pdf and Backplane Connectors - Housings product details from TE Connectivity AMP Connectors stock available at Xinshop
