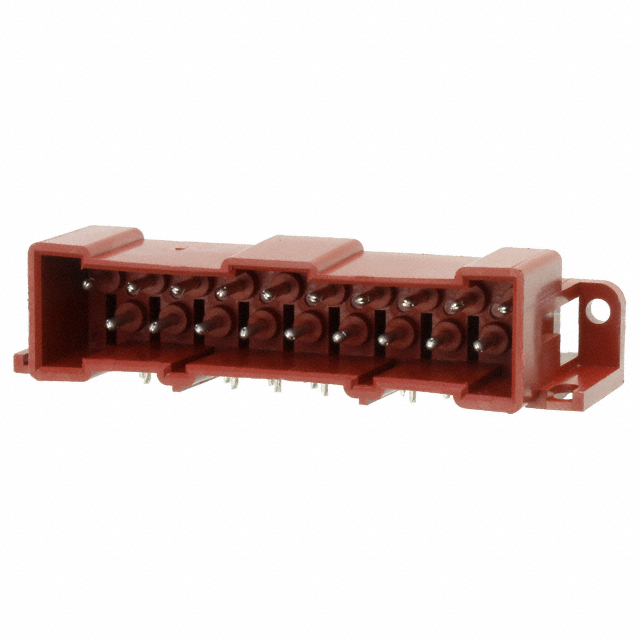

208099-1
Or copy the link below:
- Mfr.Part #
- 208099-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 19POS 6.35MM
- Stock
- 15,033
- In Stock ：
- 15,033
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Reliability :
- COMMERCIAL
- IEC Conformance :
- No
- Insulation Material :
- Polyamide (PA), Nylon
- MIL Conformance :
- No
- Length :
- 78.74mm
- Fastening Type :
- Latch Holder
- Row Spacing - Mating :
- 0.200 (5.08mm)
- Number of Conductors :
- ONE
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Polarization Key :
- POLARIZED HOUSING
- Gender :
- Male
- Contact Material :
- Brass
- Body Breadth :
- 1.14 inch
- PCB Thickness :
- 1.6002mm
- DIN Conformance :
- No
- Connector Type :
- Header
- Lead Pitch :
- 5.08mm
- Housing Material :
- Nylon
- Plating Thickness :
- 150μin
- Material Flammability Rating :
- UL94 V-0
- Width :
- 28.956mm
- Insulation Height :
- 0.750 19.05mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Contact Length - Post :
- 0.120 3.05mm
- Factory Lead Time :
- 17 Weeks
- Max Voltage Rating (AC) :
- 600V
- Lead Free :
- Contains Lead
- Current Rating :
- 14A
- Number of Positions :
- 19
- Contact Finish Thickness - Mating :
- 150.0μin 3.81μm
- VDE Tested :
- yes
- Mount :
- Through Hole
- Approval Agency :
- UL
- RoHS Status :
- Non-RoHS Compliant
- Mounting Type :
- Through Hole, Right Angle
- Length - Tail :
- 3.05mm
- ECCN Code :
- EAR99
- Number of Positions Loaded :
- All
- Number of Rows :
- 2
- Terminal Pitch :
- 6.35mm
- Radiation Hardening :
- No
- HTS Code :
- 8536.69.40.30
- Packaging :
- Tube
- Mixed Contacts :
- No
- UL Flammability Code :
- 94V-0
- Series :
- Metrimate
- Applications :
- Automotive, General Purpose, Industrial
- Flammability Rating :
- UL94 V-0
- Filter Feature :
- No
- Orientation :
- RIGHT ANGLE
- Published :
- 2005
- Contact Plating :
- Tin
- Insulation Color :
- Red
- Contact Current Rating :
- 7.5A
- ELV :
- Non-Compliant
- Style :
- Board to Board or Cable
- Shrouding :
- Shrouded - 4 Wall
- Operating Temperature :
- -55°C~130°C
- Empty Shell :
- No
- Pitch - Mating :
- 0.250 6.35mm
- Contact Shape :
- Circular
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Type :
- Male Pin
- Body Depth :
- 0.75 inch
- Contact Finish - Mating :
- Tin-Lead
- Feature :
- Mounting Flange
- Termination :
- Solder
- Height :
- 19.05mm
- Datasheets
- 208099-1
208099-1 Documents
Metrimate Series 2-Row Header Solder Brass Tube Through Hole, Right Angle Tin-Lead Polyamide (PA), Nylon 19-Position Board to Board or Cable 0.750 19.05mm Height
208099-1 Overview
A Header package is included with it.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Tube case.It is part of the Metrimate Series of products.It is possible for the device to be used for the application Automotive, General Purpose, Industrial.A number of features make it more powerful because of its Mounting Flange feature.Through Hole mounts the part.There is no operating temperature for the device.
208099-1 Features
Metrimate series
208099-1 Applications
There are a lot of TE Connectivity AMP Connectors
208099-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
