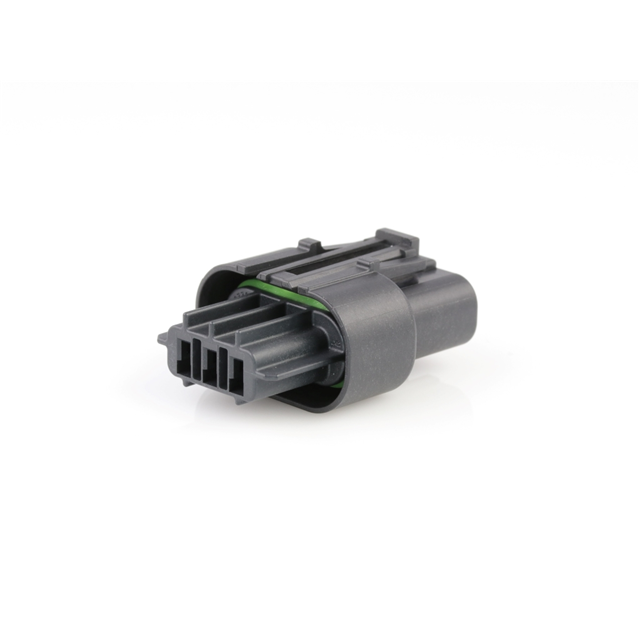

2077820003

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Maximum Operating Temperature :

+ 105 C

Type :

Receptacle Housing

Pitch (mm) :

3.6(mm)

Mounting Angle :

Straight

Packaging :

Tray

Product Depth (mm) :

13.2(mm)

Fastening Type :

Latch Lock

Contact Type :

Female Socket

Length :

21.24mm

Width :

29mm

RoHS :

Details

Note :

Contacts Not Included

Number of Positions :

3 Position

Termination Style :

Crimp

Product :

Wire Housings

Number of Contacts :

3(POS)

Product Status :

Active

Number of Rows :

1 Row

Contact Material :

-

Number of Contact Rows :

1

Contact Termination :

Crimp

Body Orientation :

Straight

Base Product Number :

207782

Series :

207782

For Use With :

Molex Squba 207777 Series Socket Contacts

Housing Color :

Black

Row Spacing :

-

Package :

Tray

Application :

Power, Signal, Wire-to-Wire

Housing Material :

Nylon

Color :

Black

Gender :

RCP

Product Length (mm) :

21.24(mm)

Mounting Type :

Cable Mount

Minimum Operating Temperature :

- 40 C

Contact Gender :

Socket (Female)

Connector Type :

Receptacle

Voltage Rating Max :

600VDC/600VAC

Tradename :

Squba

Housing Gender :

FEMALE

Current Rating (Max) :

13.2/CONTACT(A)

Pitch :

3.6 mm

Product Height (mm) :

29(mm)

Operating Temp Range :

-40C to 105C

Flammability Rating :

UL 94 V-0

Mounting Style :

Cable Mount / Free Hanging

Wire Gauge :

16-20(AWG)

Features :

Sealed
