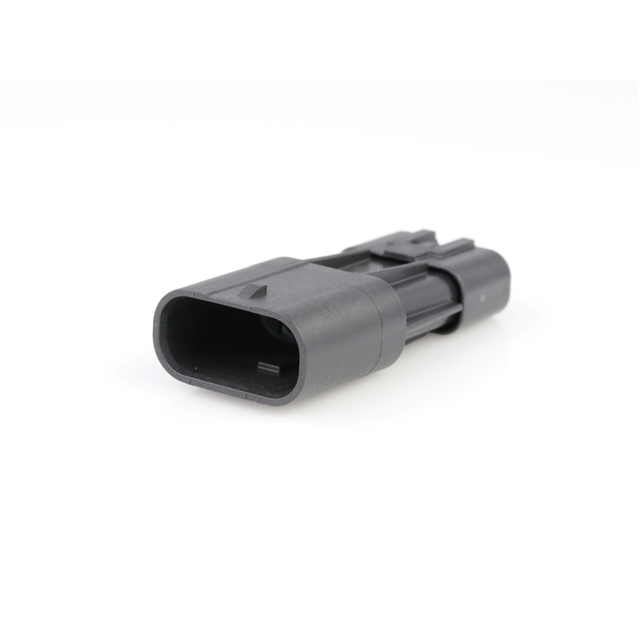

2077780003

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Fastening Type :

Locking Ramp

Minimum Operating Temperature :

- 40 C

Row Spacing :

-

Connector Type :

PLUG

Package :

Bag

Application :

Wire-to-Wire

Current Rating (Max) :

13.2/CONTACT(A)

Contact Gender :

-

RoHS :

Details

Wire Gauge :

16-20(AWG)

Current Rating :

-

Maximum Operating Temperature :

+ 105 C

Operating Temp Range :

-40C to 105C

Product Height (mm) :

41.7(mm)

Number of Rows :

1

Product Status :

Active

Pitch :

3.6mm

Number of Contact Rows :

1

Voltage Rating Max :

600VDC/600VAC

For Use With :

Molex Squba 207776 Series Pin Contacts

Packaging :

Bag

Product Category :

Headers and Wire Housings

Number of Contacts :

3(POS)

Series :

Squba 3.6

Contact Material :

-

Mounting Type :

Cable Mount

Mounting Style :

Cable Mount / Free Hanging

Number of Positions :

3 Position

Pitch (mm) :

3.6(mm)

Color :

Black

Gender :

PL

Product :

Wire Housings

Type :

Housing

Note :

Contacts Not Included

Length :

18.9mm

Base Product Number :

207778

Housing Material :

Nylon

Contact Type :

Male Pin

Tradename :

Squba

Contact Plating :

-

Housing Gender :

Male

Termination Style :

-

Width :

41.7mm

Mounting Angle :

Straight

Product Type :

Headers and Wire Housings

Product Length (mm) :

18.9(mm)

Housing Color :

Black

Features :

Sealed

Contact Termination :

Crimp

Manufacturer :

Molex

Body Orientation :

Straight

Flammability Rating :

UL 94 V-0

Brand :

Molex

Subcategory :

Headers and Wire Housings
