207614-3

Share

Or copy the link below:

Mfr.Part #
207614-3
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN HDR 16P 0.197 GOLD PCB R/A
Stock
43,717
In Stock :
43,717

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Receptacles, Female Sockets
Packaging :
Tray
Reliability :
COMMERCIAL
Depth :
19.5mm
Feature :
Mounting Flange
Number Of PCB Rows :
1
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Pbfree Code :
No
Dielectric Withstanding Voltage :
2000VAC V
Lead Free :
Contains Lead
Housing Color :
Red
HTS Code :
8536.69.40.30
PCB Thickness :
1.6002mm
Body Breadth :
0.433 inch
MIL Conformance :
No
Contact Finish Thickness - Mating :
30.0μin 0.76μm
Housing Material :
Nylon
Voltage - Rated :
600V
Published :
2005
Termination :
Solder
Number of Positions Loaded :
All
Contact Finish Thickness - Post :
150.0μin 3.81μm
Height :
11mm
Contact Shape :
Circular
JESD-609 Code :
e0
Radiation Hardening :
No
Contact Type :
Female Socket
Fastening Type :
Latch Holder
IEC Conformance :
No
Gender :
FEMALE
Terminal Pitch :
5.0038mm
Mounting Type :
Through Hole, Right Angle
Plating Thickness :
30μin
Length :
101.78mm
VDE Tested :
yes
Connector Type :
Header
Number of Positions :
16
Number of Rows :
1
Series :
Metrimate
Pitch - Mating :
0.197 5.00mm
Insulation Height :
0.433 11.00mm
Flammability Rating :
UL94 V-0
Orientation :
RIGHT ANGLE
Shell Material :
Polyamide
Option :
GENERAL PURPOSE
Mount :
Through Hole
Number of Conductors :
ONE
UL Flammability Code :
94V-0
Width :
19.51mm
Max Voltage Rating (AC) :
600V
Lead Pitch :
5mm
Polarization Key :
POLARIZED HOUSING
Operating Temperature :
-55°C~130°C
Contact Length - Post :
0.186 4.72mm
Withdrawl Force-Min :
.278 N
Filter Feature :
No
RoHS Status :
Non-RoHS Compliant
Insulation Resistance :
5000000000Ohm
Length - Tail :
4.72mm
Factory Lead Time :
17 Weeks
Mixed Contacts :
No
Contact Finish - Mating :
Gold
DIN Conformance :
No
Contact Current Rating :
7.5A
Contact Material :
Phosphor Bronze
Empty Shell :
No
Style :
Board to Cable/Wire
PCB Mounting Orientation :
RIGHT ANGLE
Insertion Force-Max :
9.7856 N
ECCN Code :
EAR99
Insulator Color :
Red
Contact Finish - Post :
Tin-Lead
Material Flammability Rating :
UL94 V-0
ELV :
Non-Compliant
Insulation Material :
Thermoplastic
Current Rating :
14A
Approval Agency :
UL
Introducing Headers, Receptacles, Female Sockets TE Connectivity AMP Connectors 207614-3 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Right Angle, Operating Temperature:-55°C~130°C, 207614-3 pinout, 207614-3 datasheet PDF, 207614-3 amp .Beyond Headers, Receptacles, Female Sockets TE Connectivity AMP Connectors 207614-3 ,we also offer 5031590300, PPPC022LFBN-RC, PPTC071LFBN-RC, Our vast inventory has you covered. Contact us now for immediate solutions.

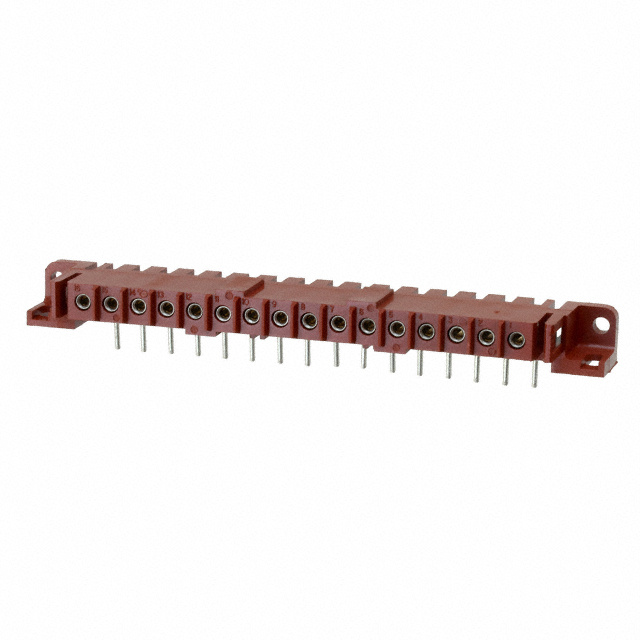

TE Connectivity AMP Connectors 207614-3


1 Rows Header Solder Phosphor Bronze Through Hole, Right Angle Tray Gold Thermoplastic 16 Positions Female Socket

207614-3 Overview


The product comes in a package of Header.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the Metrimate Series.It is more powerful in many ways due to its Mounting Flange feature.It is mounted by Through Hole.It operates at an operating temperature of -55°C~130°C.

207614-3 Features


Metrimate series


207614-3 Applications


There are a lot of TE Connectivity AMP Connectors
207614-3 Rectangular Connectors applications.
