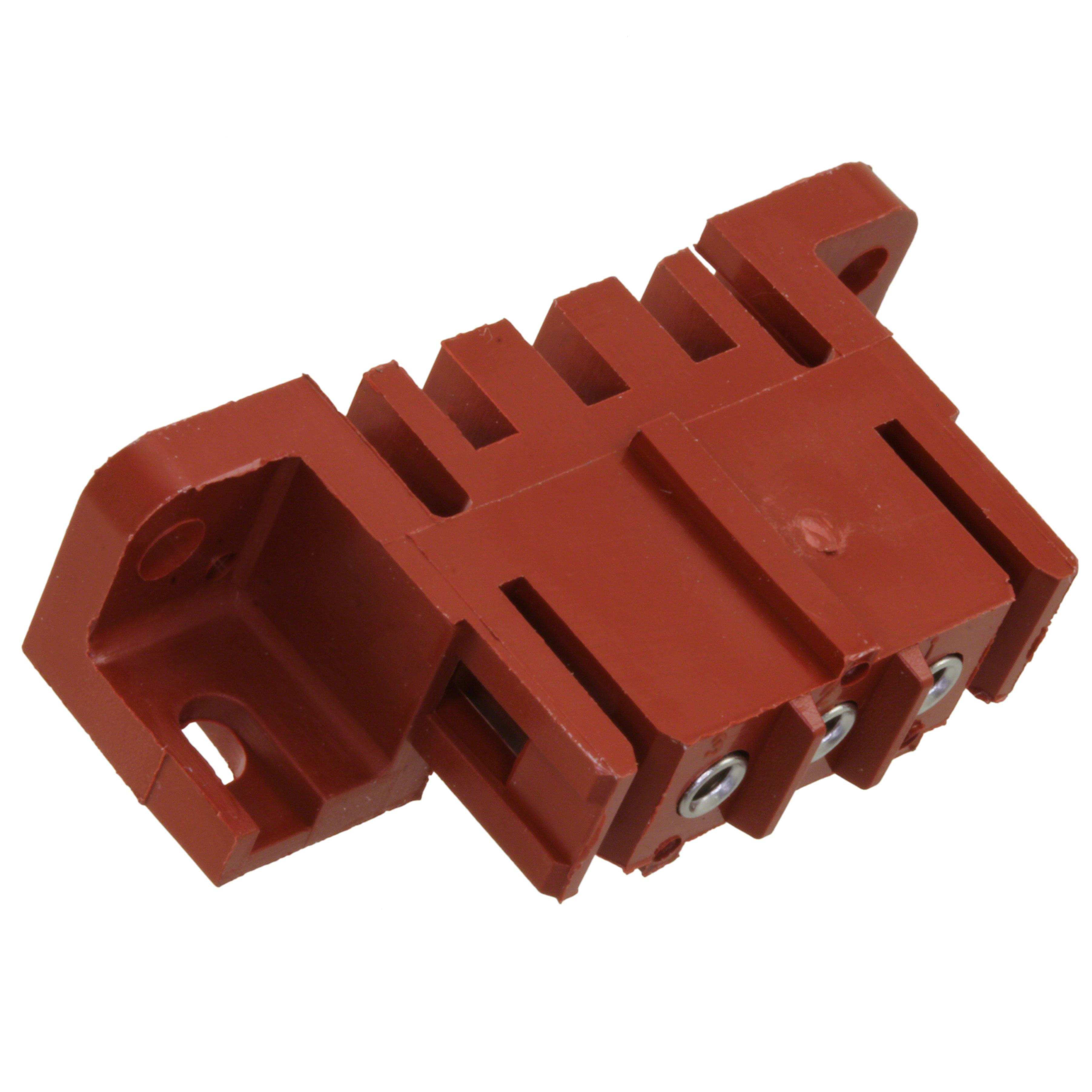

207608-3
Or copy the link below:
- Mfr.Part #
- 207608-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 3POS 0.197 GOLD PCB R/A
- Stock
- 15,343
- In Stock ：
- 15,343
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Reliability :
- COMMERCIAL
- Insulator Color :
- Red
- Withdrawl Force-Min :
- .278 N
- Contact Current Rating :
- 7.5A
- Contact Finish - Mating :
- Gold
- JESD-609 Code :
- e0
- Number of Positions Loaded :
- All
- Style :
- Board to Cable/Wire
- Depth :
- 19.51mm
- MIL Conformance :
- No
- Termination :
- Solder
- Filter Feature :
- No
- Pbfree Code :
- No
- Mount :
- Through Hole
- Factory Lead Time :
- 17 Weeks
- Max Voltage Rating (AC) :
- 600V
- PCB Mounting Orientation :
- RIGHT ANGLE
- Number of Rows :
- 1
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Height :
- 19.51mm
- ECCN Code :
- EAR99
- Number of Positions :
- 3
- Insertion Force-Max :
- 4.8928 N
- Current Rating :
- 14A
- Contact Shape :
- Circular
- Width :
- 11mm
- Gender :
- FEMALE
- Insulation Height :
- 0.433 11.00mm
- Number Of PCB Rows :
- 1
- Lead Pitch :
- 5mm
- Dielectric Withstanding Voltage :
- 2000VAC V
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- RoHS Status :
- Non-RoHS Compliant
- ELV :
- Non-Compliant
- Housing Color :
- Red
- Polarization Key :
- POLARIZED HOUSING
- Option :
- GENERAL PURPOSE
- Contact Type :
- Female Socket
- Radiation Hardening :
- No
- Published :
- 1997
- Shell Material :
- POLYETHYLENE
- Contact Material :
- Phosphor Bronze
- PCB Thickness :
- 1.6002mm
- Orientation :
- RIGHT ANGLE
- Mounting Type :
- Through Hole, Right Angle
- Number of Conductors :
- ONE
- Contact Length - Post :
- 0.186 4.72mm
- Packaging :
- Tray
- VDE Tested :
- yes
- Approval Agency :
- UL
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Durability :
- 250 Cycles
- Operating Temperature :
- -55°C~130°C
- Mixed Contacts :
- No
- UL Flammability Code :
- 94V-0
- Series :
- Metrimate
- Fastening Type :
- Latch Holder
- Connector Type :
- Header
- IEC Conformance :
- No
- Feature :
- Mounting Flange
- DIN Conformance :
- No
- Pitch - Mating :
- 0.197 5.00mm
- Voltage - Rated :
- 600V
- Length :
- 36.55mm
- Empty Shell :
- No
- Insulation Material :
- Thermoplastic
- Lead Free :
- Contains Lead
- Length - Tail :
- 4.5974mm
- Housing Material :
- Nylon
- Flammability Rating :
- UL94 V-0
- Contact Finish - Post :
- Tin-Lead
- Datasheets
- 207608-3
207608-3 Documents
1 Rows Header Solder Phosphor Bronze Through Hole, Right Angle Tray Gold Thermoplastic 3 Positions Female Socket
207608-3 Overview
Packaging for this item is Header.There is a mounting type of Through Hole, Right Angle for this device.It is necessary to use a Tray case for packaging the product.This product is part of the Metrimate Series.In many ways, its Mounting Flange feature makes it more powerful.Through Hole is used to mount the part.In this case, the device operates at -55°C~130°C Operating Temperature.
207608-3 Features
Metrimate series
207608-3 Applications
There are a lot of TE Connectivity AMP Connectors
207608-3 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
