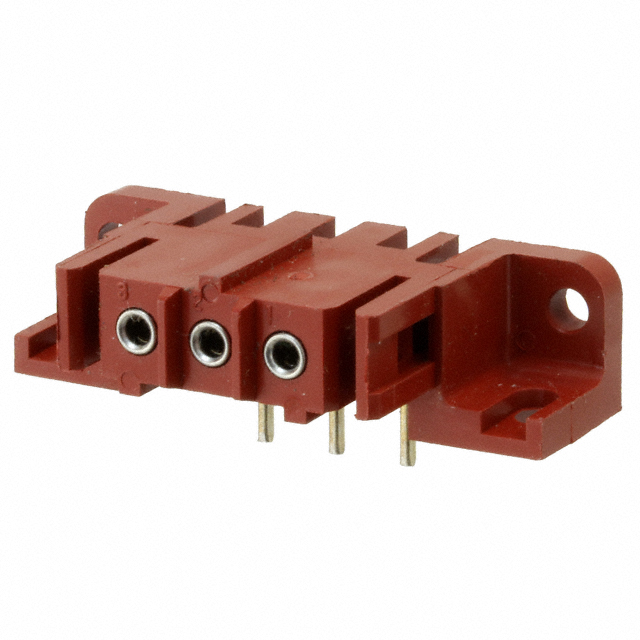

207608-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Receptacles, Female Sockets

Empty Shell :

No

Current Rating (Amps) :

7.5A

Contact Material :

Phosphor Bronze

Contact Finish - Mating :

Tin-Lead

Mounting Type :

Through Hole, Right Angle

ECCN Code :

EAR99

Series :

Metrimate

MIL Conformance :

No

Contact Plating :

Tin

Number of Conductors :

ONE

Number of Positions Loaded :

All

RoHS Status :

Non-RoHS Compliant

Lead Length :

4.6mm

Published :

1997

IEC Conformance :

No

Pitch - Mating :

0.197 5.00mm

Feature :

Mounting Flange

Termination :

Solder

Contact Type :

Female Socket

PCB Mounting Orientation :

RIGHT ANGLE

Fastening Type :

Latch Holder

DIN Conformance :

No

Orientation :

RIGHT ANGLE

Reference Standard :

UL, CSA

Polarization Key :

POLARIZED HOUSING

Withdrawl Force-Min :

.278 N

PCB Contact Pattern :

RECTANGULAR

Mixed Contacts :

No

ELV :

Non-Compliant

Number of Rows :

1

Style :

Board to Cable/Wire

Packaging :

Tray

Connector Type :

Header

Contact Length - Post :

0.186 4.72mm

Material Flammability Rating :

UL94 V-0

Flammability Rating :

UL94 V-0

Durability :

250 Cycles

Filter Feature :

No

Contact Shape :

Circular

Body Depth :

0.768 inch

Insulation Material :

Thermoplastic

Lead Free :

Contains Lead

UL Flammability Code :

94V-0

Pbfree Code :

No

Operating Temperature :

-55°C~130°C

Lead Pitch :

5mm

Insulation Color :

Red

Reliability :

COMMERCIAL

Dielectric Withstanding Voltage :

2000VAC V

Option :

GENERAL PURPOSE

Keyed :

No

Number of Positions :

3

Mount :

Through Hole

Voltage - Rated :

600V

Contact Finish Thickness - Mating :

150.0μin 3.81μm

Contact Finish Thickness - Post :

150.0μin 3.81μm

Factory Lead Time :

3 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shell Material :

POLYETHYLENE

Insertion Force-Max :

4.8928 N

Gender :

FEMALE

Number Of PCB Rows :

1

Current Rating :

14A

Insulation Height :

0.433 11.00mm
