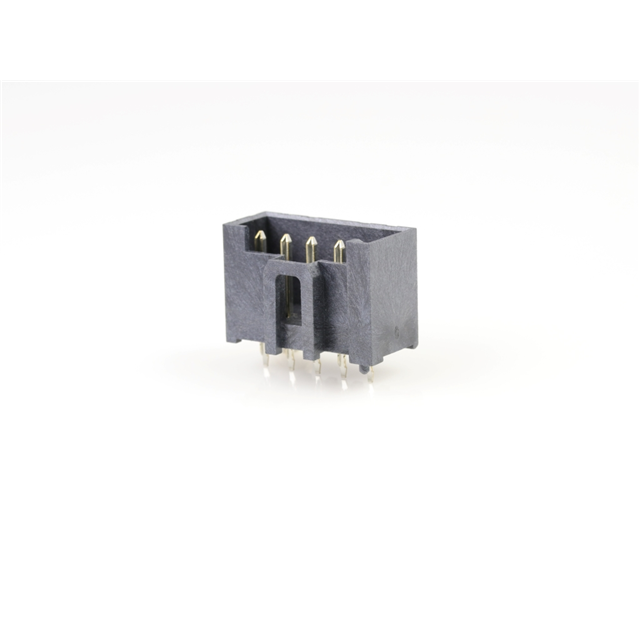

2074790005
Or copy the link below:
- Mfr.Part #
- 2074790005
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 5POS 3.96MM
- Stock
- 183
- In Stock ：
- 183
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish - Mating :
- Tin
- Factory Lead Time :
- 14 Weeks
- Contact Shape :
- Square
- Series :
- L1NK 396 207479
- Pitch - Mating :
- 0.156 3.96mm
- Applications :
- Automotive, General Purpose, Industrial, Medical, Telecommunications
- RoHS Status :
- ROHS3 Compliant
- Style :
- Board to Cable/Wire
- Fastening Type :
- Latch Holder
- Insulation Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Type :
- Male Pin
- Overall Contact Length :
- 0.693 17.60mm
- Contact Length - Post :
- 0.138 3.50mm
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -40°C~105°C
- Connector Type :
- Header
- Packaging :
- Tray
- Voltage - Rated :
- 350V
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Shrouding :
- Shrouded - 4 Wall
- Mounting Type :
- Through Hole
- Current Rating (Amps) :
- Varies by WireGAuge
- Number of Positions Loaded :
- All
- Number of Rows :
- 1
- Feature :
- Board Guide, Glow Wire Compliant
- Number of Positions :
- 5
- Termination :
- Solder
- Contact Material :
- Brass Alloy
- Datasheets
- 2074790005
2074790005 Documents
L1NK 396 207479 Series 1-Row Header Solder Brass Alloy Tray Through Hole Tin Liquid Crystal Polymer (LCP) 5-Position Board to Cable/Wire
2074790005 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Tray case is used to package the product.A product of the L1NK 396 207479 Series, it belongs to the range of products of that series.This device may be used for the purpose of Automotive, General Purpose, Industrial, Medical, Telecommunications.A number of features make the Board Guide, Glow Wire Compliant feature more powerful.-40°C~105°C Operating Temperature is the default operating temperature for the device.
2074790005 Features
L1NK 396 207479 series
2074790005 Applications
There are a lot of Molex
2074790005 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
