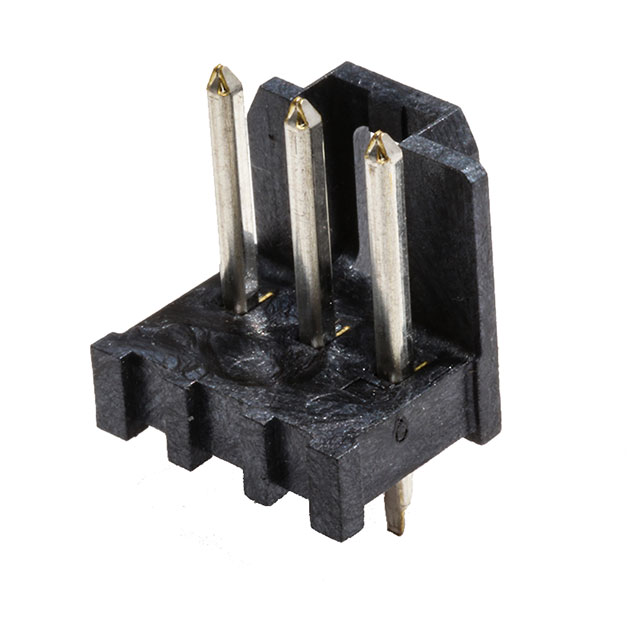

2074780003
Or copy the link below:
- Mfr.Part #
- 2074780003
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 3.96MM
- Stock
- 6,554
- In Stock ：
- 6,554
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Termination :
- Solder
- Current Rating (Amps) :
- Varies by WireGAuge
- Contact Length - Post :
- 0.138 3.50mm
- Contact Finish - Mating :
- Tin
- Insulation Height :
- 0.476 12.10mm
- Contact Type :
- Male Pin
- Material Flammability Rating :
- UL94 V-0
- Insulation Color :
- Black
- Voltage - Rated :
- 350V
- Number of Positions Loaded :
- All
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Factory Lead Time :
- 14 Weeks
- Packaging :
- Tray
- Operating Temperature :
- -40°C~105°C
- Fastening Type :
- Latch Holder
- Number of Rows :
- 1
- Mounting Type :
- Through Hole
- Applications :
- Automotive, General Purpose, Industrial, Medical, Telecommunications
- Contact Material :
- Brass Alloy
- Contact Shape :
- Square
- Number of Positions :
- 3
- Feature :
- Glow Wire Compliant
- Shrouding :
- Shrouded - 1 Wall
- Connector Type :
- Header
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- L1NK 396 207478
- Pitch - Mating :
- 0.156 3.96mm
- RoHS Status :
- ROHS3 Compliant
- Overall Contact Length :
- 0.693 17.60mm
- Style :
- Board to Cable/Wire
- Datasheets
- 2074780003
L1NK 396 207478 Series 1-Row Header Solder Brass Alloy Tray Through Hole Tin Liquid Crystal Polymer (LCP) 3-Position Board to Cable/Wire 0.476 12.10mm Height
2074780003 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the L1NK 396 207478 Series of products.It is possible for the device to be used for the application Automotive, General Purpose, Industrial, Medical, Telecommunications.A number of features make it more powerful because of its Glow Wire Compliant feature.There is no operating temperature for the device.
2074780003 Features
L1NK 396 207478 series
2074780003 Applications
There are a lot of Molex
2074780003 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
