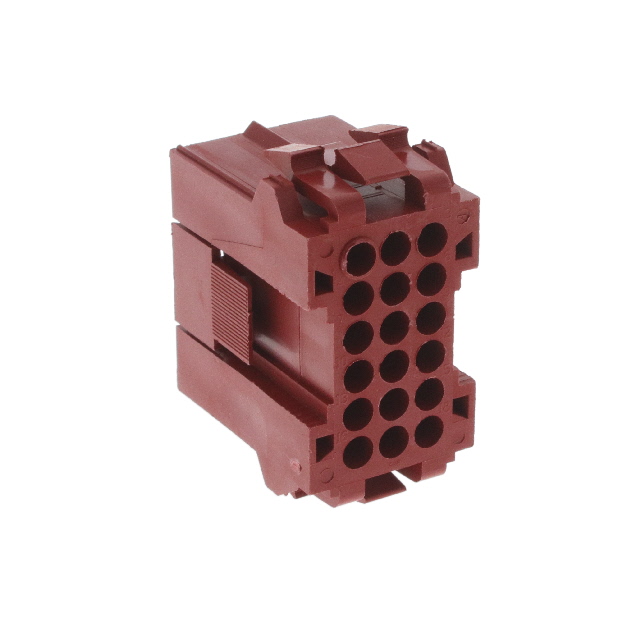

207443-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Series :

Metrimate

IEC Conformance :

No

Flammability Rating :

UL94 V-0

Insulation Resistance :

5000000000Ohm

UL Flammability Code :

94V-0

Orientation :

Straight

Housing Color :

Red, Black

Fastening Type :

Latch Lock

Material :

Thermoplastic

Row Spacing :

0.197 (5.00mm)

RoHS Status :

RoHS Compliant

Dielectric Withstanding Voltage :

600VAC V

Min Operating Temperature :

-55°C

Mixed Contacts :

yes

Contact Termination :

Crimp and Solder

Approval Agency :

UL

Reliability :

COMMERCIAL

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Mounting Type :

Free Hanging (In-Line)

Max Current Rating :

14A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Bulk

Published :

1997

MIL Conformance :

No

Wire/Cable Type :

Discrete

Note :

Contacts Not Included

Termination :

Crimp

Max Operating Temperature :

130°C

Option :

GENERAL PURPOSE

Lead Free :

Lead Free

Reference Standard :

UL

VDE Tested :

yes

Number of Rows :

3

Contact Type :

Male Pin

Housing Material :

Nylon

Durability :

2000 cycles

Factory Lead Time :

7 Weeks

Panel Thickness :

2.29mm

Pitch :

0.197 5.00mm

Width :

23.8mm

Polarization Key :

POLAR PIN POSITION

Color :

Black or Red

REACH SVHC :

No SVHC

Operating Supply Voltage :

600V

Filter Feature :

No

Empty Shell :

yes

Reach Compliance Code :

not_compliant

Max Voltage Rating (AC) :

600V

DIN Conformance :

No

Contact Finish - Mating :

NOT SPECIFIED

Length :

40.77mm

Connector Type :

Receptacle

Number of Positions :

18

Total Number of Contacts :

18

Depth :

33.02mm

Mount :

Free Hanging, Panel
