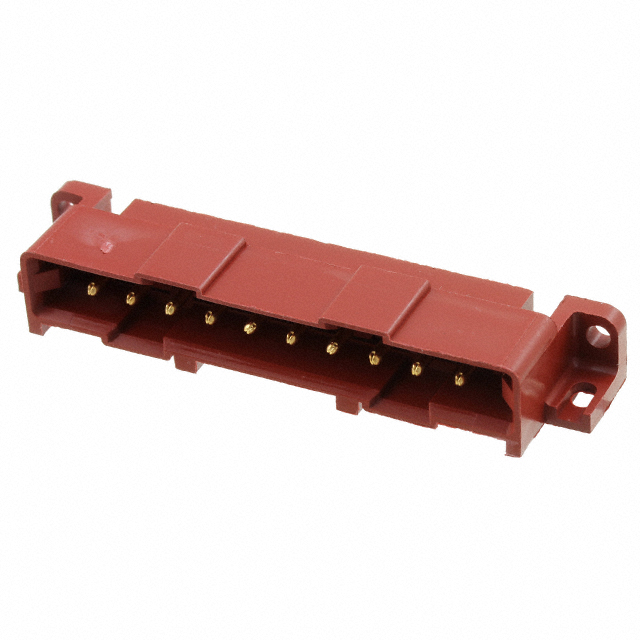

207398-3
Or copy the link below:
- Mfr.Part #
- 207398-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 10POS 5MM
- Stock
- 38,593
- In Stock ：
- 38,593
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Insulation Color :
- Black, Red
- Contact Finish - Post :
- Tin-Lead
- Width :
- 12.7mm
- Length :
- 71.86mm
- Approval Agency :
- UL
- Contact Material :
- Brass
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Filter Feature :
- No
- Termination :
- Solder
- Height :
- 17.5mm
- Published :
- 2004
- Packaging :
- Tube
- Body Breadth :
- 0.5 inch
- Pbfree Code :
- No
- PCB Mounting Orientation :
- RIGHT ANGLE
- Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Contact Length - Post :
- 0.192 4.88mm
- Housing Material :
- Nylon
- Series :
- Metrimate
- Lead Pitch :
- 5mm
- Reference Standard :
- UL
- Number of Positions :
- 10
- Mount :
- Through Hole
- Reliability :
- COMMERCIAL
- Polarization Key :
- POLARIZED HOUSING
- Pitch - Mating :
- 0.197 5.00mm
- Plating Thickness :
- 30μin
- Mixed Contacts :
- No
- Terminal Pitch :
- 5.0038mm
- UL Flammability Code :
- 94V-0
- Current Rating :
- 14A
- PCB Thickness :
- 1.6002mm
- DIN Conformance :
- No
- Contact Current Rating :
- 7.5A
- Operating Temperature :
- -55°C~130°C
- Applications :
- Automotive, General Purpose, Industrial
- Mounting Type :
- Through Hole, Right Angle
- Depth :
- 17.5mm
- Insulation Material :
- Polyamide (PA), Nylon
- Orientation :
- RIGHT ANGLE
- Max Voltage Rating (AC) :
- 600V
- Feature :
- Mounting Flange
- Lead Free :
- Contains Lead
- MIL Conformance :
- No
- Number of Rows :
- 1
- Number of Conductors :
- ONE
- Style :
- Board to Board or Cable
- Radiation Hardening :
- No
- VDE Tested :
- yes
- Number Of PCB Rows :
- 1
- HTS Code :
- 8536.69.40.30
- Contact Shape :
- Circular
- RoHS Status :
- Non-RoHS Compliant
- Fastening Type :
- Latch Holder
- Contact Finish - Mating :
- Gold
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- Header
- ECCN Code :
- EAR99
- Insulation Height :
- 0.500 12.70mm
- Empty Shell :
- No
- Max Voltage Rating (DC) :
- 600V
- JESD-609 Code :
- e0
- IEC Conformance :
- No
- Contact Gender :
- Male
- Contact Type :
- Male Pin
- Color :
- Red
- Length - Tail :
- 4.8768mm
- Factory Lead Time :
- 22 Weeks
- Shrouding :
- Shrouded - 4 Wall
- Datasheets
- 207398-3
207398-3 Documents
Metrimate Series 1-Row Header Solder Brass Tube Through Hole, Right Angle Gold Polyamide (PA), Nylon 10-Position Board to Board or Cable 0.500 12.70mm Height
207398-3 Overview
Packaging is in the form of Header.This device has a Through Hole, Right Angle mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the Metrimate Series.There are a variety of possible applications for this device, including Automotive, General Purpose, Industrial.Several benefits come from the Mounting Flange feature.There is a mounting hole at Through Hole.Devices operate at -55°C~130°C operating temperatures.
207398-3 Features
Metrimate series
207398-3 Applications
There are a lot of TE Connectivity AMP Connectors
207398-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
