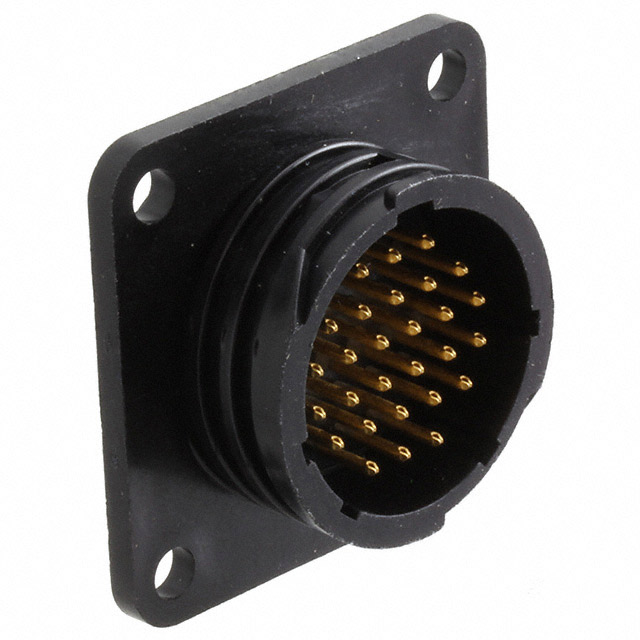

207369-1
Or copy the link below:
- Mfr.Part #
- 207369-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MALE 28POS GOLD SOLDER
- Stock
- 35,525
- In Stock ：
- 35,525
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Assemblies
- Mount :
- Panel
- Mixed Contacts :
- No
- Mating Alignment :
- With
- RoHS Status :
- Non-RoHS Compliant
- Filter Feature :
- No
- Current Rating :
- 7.5A
- Factory Lead Time :
- 10 Weeks
- Material Flammability Rating :
- UL94 V-0
- IEC Conformance :
- No
- Number of Ports :
- 1
- Plating Thickness :
- 762 nm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Assembly Length :
- 23.495mm
- Total Number of Contacts :
- 28
- Operating Supply Voltage :
- 250V
- Series :
- CPC Series 2
- Empty Shell :
- No
- Mounting Feature :
- Flange
- Contact Finish - Mating :
- Gold
- Color :
- Black
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Lead Length :
- 3.18mm
- Published :
- 2007
- Insulation Material :
- Plastic
- Shell Size - Insert :
- 17-28
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Termination :
- Solder
- Number of Positions :
- 28
- Gender :
- Male
- DIN Conformance :
- No
- Applications :
- GENERAL PURPOSE
- Number of Power Positions :
- 0
- Shell Material :
- Thermoplastic
- ELV :
- Non-Compliant
- Flammability Rating :
- UL94 V-0
- Lead Free :
- Contains Lead
- Connector Type :
- Receptacle, Male Pins
- Plating :
- Thermoplastic, Tin
- Fastening Type :
- Threaded
- Operating Temperature :
- -40°C~105°C
- Pbfree Code :
- No
- Sealable :
- No
- MIL Conformance :
- No
- Orientation :
- Keyed
- Mounting Type :
- Panel Mount, Through Hole
- Packaging :
- Tray
- Backshell Type :
- Solid
- Length :
- 23.5mm
- Datasheets
- 207369-1
Receptacle, Male Pins Thermoplastic Panel Mount, Through Hole 28 Positions Solder Gold Tray Keyed Threaded
207369-1 Overview
The product is packaged in Receptacle, Male Pins.This device is mounted in the Panel Mount, Through Hole position.It has been determined that a Tray case is necessary to package the product.There is a product in the CPC Series 2 Series.Part Panel is mounted to the part.As a result, the device runs at -40°C~105°C Operating Temperature.
207369-1 Features
CPC Series 2 series
207369-1 Applications
There are a lot of TE Connectivity AMP Connectors
207369-1 Circular Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
