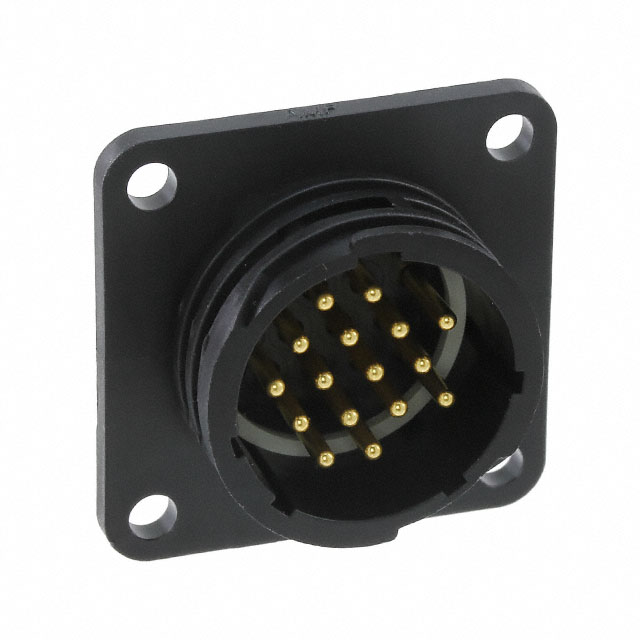

207292-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Circular Connector Assemblies

Material Flammability Rating :

UL94 V-0

Assembly Length :

22.5806mm

Mixed Contacts :

No

Total Number of Contacts :

16

Mating Alignment :

With

Termination :

Solder

Operating Supply Voltage :

250V

Connector Type :

Receptacle, Male Pins

Plating Thickness :

762 nm

Operating Temperature :

-55°C~105°C

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Mounting Type :

Panel Mount, Through Hole

Number of Ports :

1

Mounting Feature :

Flange

Series :

CPC Series 1

Lead Free :

Lead Free

Shell Material :

Thermoplastic

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish - Mating :

Gold

Orientation :

Keyed

Number of Power Positions :

0

Material :

Plastic

Housing Material :

Nylon

Number of Terminations :

16

Option :

GENERAL PURPOSE

Max Voltage Rating (AC) :

250V

Empty Shell :

No

Current Rating :

13A

IEC Conformance :

No

RoHS Status :

RoHS Compliant

Mount :

Panel, Through Hole

Contact Material :

Brass

Factory Lead Time :

19 Weeks

ELV :

Compliant

MIL Conformance :

No

DIN Conformance :

No

Pbfree Code :

yes

VDE Tested :

No

Packaging :

Tray

Backshell Type :

Solid

Shell Size - Insert :

17-16

Sealable :

yes

Filter Feature :

No

Published :

2003

Color :

Black

Fastening Type :

Threaded

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

Lead Length :

3.18mm

Voltage - Rated :

250VAC/DC

Flammability Rating :

UL94 V-0
