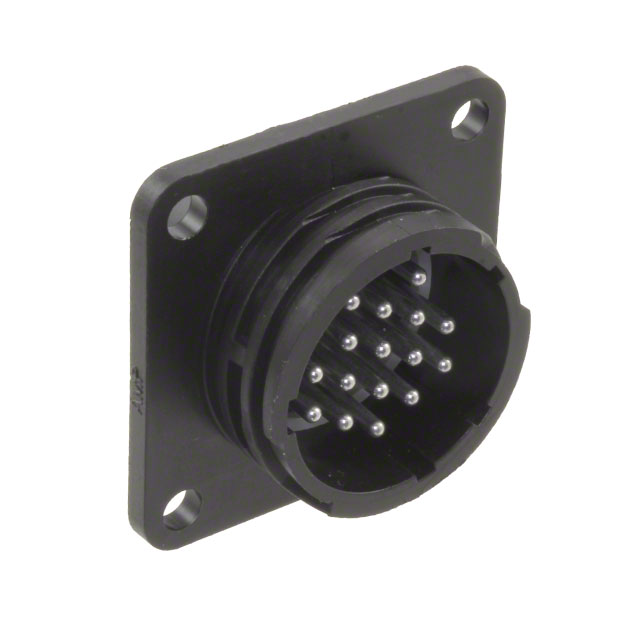

207292-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Circular Connector Assemblies

RoHS Status :

RoHS Compliant

Voltage - Rated :

250VAC/DC

Filter Feature :

No

Published :

2003

Connector Type :

Receptacle, Male Pins

DIN Conformance :

No

Total Number of Contacts :

16

Shell Material :

Thermoplastic

Contact Material :

Brass

Mounting Type :

Panel Mount, Through Hole

Material Flammability Rating :

UL94 V-0

Max Voltage Rating (AC) :

250V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Length :

3.18mm

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

VDE Tested :

No

Factory Lead Time :

19 Weeks

Empty Shell :

No

Operating Temperature :

-55°C~105°C

Lead Free :

Lead Free

Packaging :

Tray

Pbfree Code :

yes

Contact Finish Thickness - Mating :

50.0μin 1.27μm

Number of Positions :

16

Series :

CPC Series 1

MIL Conformance :

No

Number of Ports :

1

Current Rating :

13A

Shielding :

Unshielded

Assembly Length :

22.5806mm

Sealable :

yes

Gender :

Male

Number of Power Positions :

0

Termination :

Solder

Color :

Black

Shell Size - Insert :

17-16

Backshell Type :

Solid

Mixed Contacts :

No

Fastening Type :

Threaded

Contact Finish - Mating :

Tin

Mounting Feature :

Flange

ELV :

Compliant

Flammability Rating :

UL94 V-0

Plating :

Thermoplastic, Tin

Mating Alignment :

With

Operating Supply Voltage :

250V

Housing Material :

Nylon

Orientation :

Keyed

IEC Conformance :

No

Mount :

Panel

Option :

GENERAL PURPOSE
