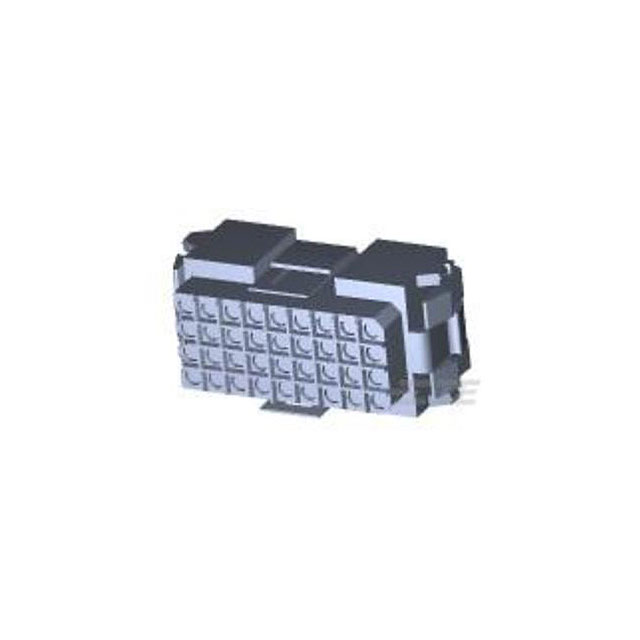

207019-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Mounting Type :

Free Hanging (In-Line)

Pitch :

0.197 5.00mm

Total Number of Contacts :

36

Gender :

Male

Flammability Rating :

UL94 V-0

Rated Current (Signal) :

7.5A

Packaging :

Bulk

Note :

Contacts Not Included

Termination :

Crimp

Material :

Thermoplastic

Empty Shell :

yes

ELV :

Compliant

Depth :

27.15mm

Housing Color :

Red

REACH SVHC :

No SVHC

Lead Free :

Lead Free

Contact Material :

Copper, Gold

Connector Type :

PLUG

Min Operating Temperature :

-55°C

Mixed Contacts :

yes

Color :

Black or Red

Panel Thickness :

2.29mm

Contact Type :

Female Socket

IEC Conformance :

No

Series :

Metrimate

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Resistance :

5GOhm

Housing Material :

Nylon

Operating Supply Voltage :

600V

Number of Rows :

4

Wire/Cable Type :

Discrete

Length :

27.84mm

Max Operating Temperature :

130°C

ECCN Code :

EAR99

Max Current Rating :

14A

Published :

1998

Filter Feature :

No

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Reliability :

COMMERCIAL

Approval Agency :

UL

Mount :

Free Hanging, Panel

VDE Tested :

yes

Option :

GENERAL PURPOSE

Withdrawl Force-Min :

.278 N

Current Rating :

13A

Row Spacing :

0.197 (5.00mm)

Max Voltage Rating (AC) :

600V

Contact Finish - Mating :

NOT SPECIFIED

MIL Conformance :

No

Factory Lead Time :

4 Weeks

Contact Termination :

Crimp and Solder

Fastening Type :

Locking Ramp

Polarization Key :

POLARIZED HOUSING

Orientation :

Straight

Dielectric Withstanding Voltage :

2000VAC V

Number of Positions :

36

Body Breadth :

1.096 inch

RoHS Status :

RoHS Compliant

Durability :

250 Cycles
