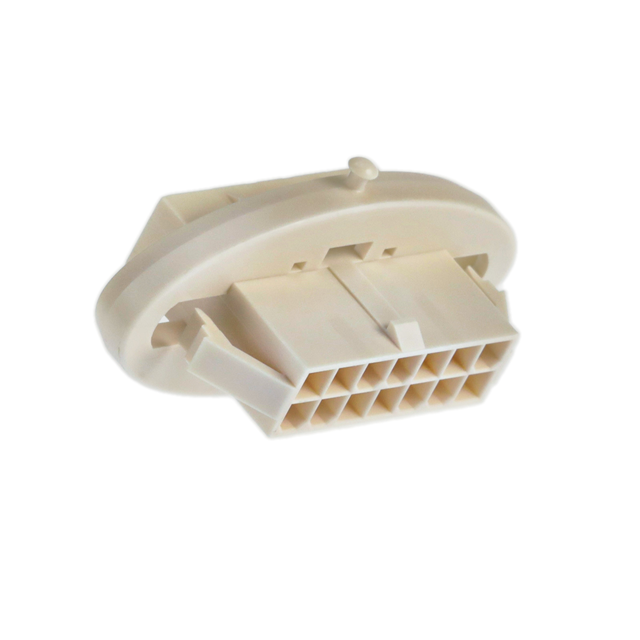

2070170014

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Number of Contacts :

14(POS)

Tradename :

Mini-Fit Sigma

Type :

Plug Housing

RoHS :

Details

Base Product Number :

207017

Package :

Bag

Contact Type :

Male Pin

Gender :

PL

Voltage Rating Max :

600VDC/600VAC

Packaging :

Bulk

Number of Positions :

14 Position

Note :

Contacts Not Included

Flammability Rating :

UL 94V-0

Number of Rows :

2 Row

Operating Temperature :

-40°C ~ 105°C

Mounting Type :

Panel Mount, Snap-In

Contact Material :

Nylon

Features :

Sealed

Product :

Wire Housings

Pitch (mm) :

4.2(mm)

Wire Gauge :

16-24(AWG)

Contact Termination :

Crimp

Product Length (mm) :

54.61(mm)

Series :

207017

Mounting Style :

Cable Mount / Free Hanging

Connector Type :

PLUG

Contact Gender :

Pin (Male)

Row Spacing :

0.165 (4.20mm)

Termination Style :

Crimp

Product Height (mm) :

26(mm)

Minimum Operating Temperature :

- 40 C

Operating Temp Range :

-40C to 105C

Color :

Natural

Housing Color :

Natural

Product Status :

Active

Number of Contact Rows :

2

For Use With :

Molex Mini-Fit TPA2 172765 Series Pin Contacts

Housing Gender :

PLUG

Body Orientation :

Straight

Application :

Power, Wire-to-Board

Housing Material :

Nylon

Fastening Type :

Locking Ramp

Maximum Operating Temperature :

+ 105 C

Pitch :

4.2 mm
