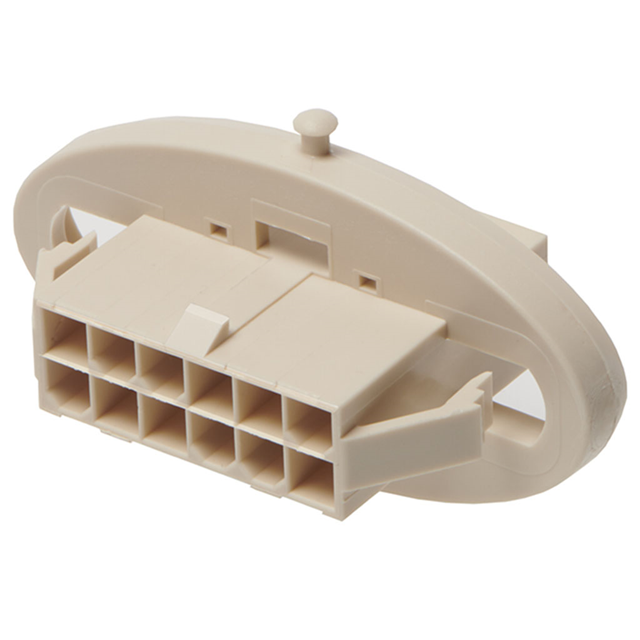

2070170012

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Row Spacing :

0.165 (4.20mm)

Base Product Number :

207017

Number of Contact Rows :

2

Product :

Wire Housings

Maximum Operating Temperature :

+ 105 C

Series :

207017

Gender :

PL

Number of Contacts :

12(POS)

Product Height (mm) :

26(mm)

For Use With :

Molex Mini-Fit TPA2 172765 Series Pin Contacts

Product Length (mm) :

50.4(mm)

Fastening Type :

Locking Ramp

Flammability Rating :

UL 94V-0

Operating Temp Range :

-40C to 105C

Number of Rows :

2 Row

Minimum Operating Temperature :

- 40 C

Contact Gender :

Pin (Male)

Connector Type :

PLUG

Number of Positions :

12 Position

Termination Style :

Crimp

Housing Color :

Natural

Package :

Bag

Packaging :

Bulk

Voltage Rating Max :

600VDC/600VAC

Color :

Natural

Tradename :

Mini-Fit Sigma

Mounting Type :

Panel Mount, Snap-In

Operating Temperature :

-40°C ~ 105°C

Product Status :

Active

RoHS :

Details

Body Orientation :

Straight

Housing Material :

Nylon

Note :

Contacts Not Included

Features :

Sealed

Pitch :

4.2 mm

Contact Material :

Nylon

Type :

Plug Housing

Contact Termination :

Crimp

Housing Gender :

PLUG

Mounting Style :

Cable Mount / Free Hanging

Application :

Power, Wire-to-Board

Contact Type :

Male Pin

Wire Gauge :

16-24(AWG)

Pitch (mm) :

4.2(mm)
